Blodgett Gas Convection Oven Model SHO-100-G - $3,950
QR Code Link to This Post

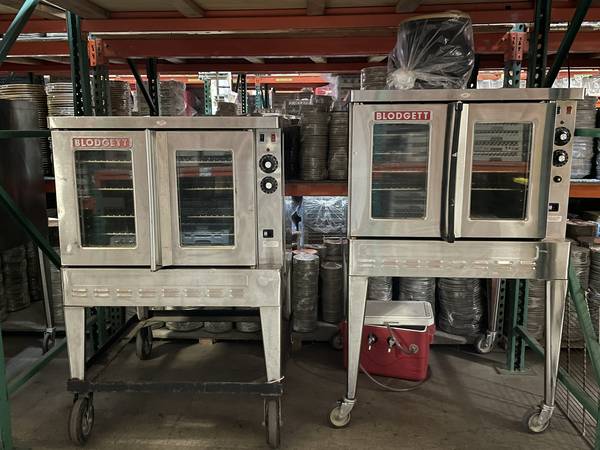

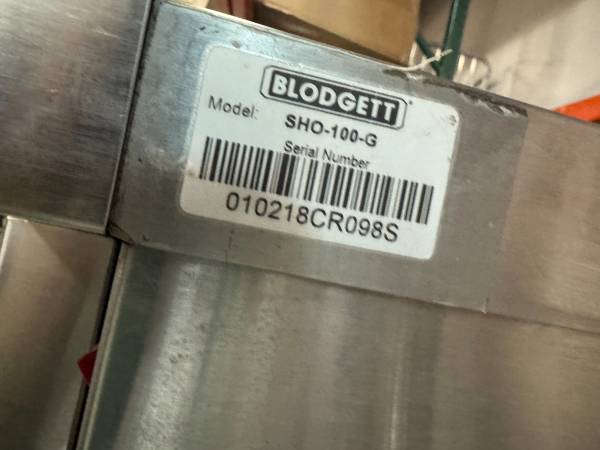

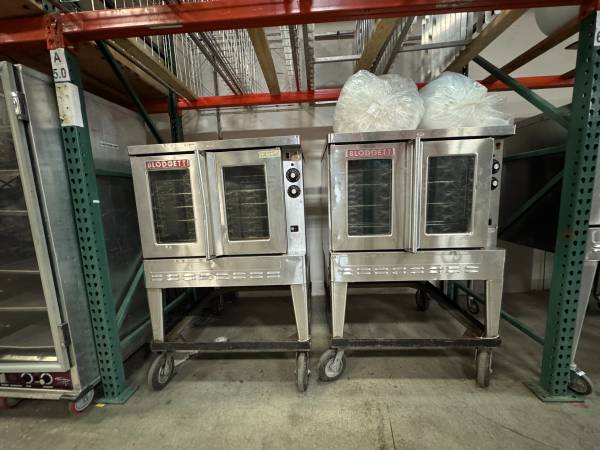

Blodgett Model SHO-100-G Gas Convection Oven
Standard depth baking compartment - accepts five 18” x 26” standard full- size baking pans in left-to-right positions.
All data is shown per oven section, unless otherwise indicated.
Refer to operator manual specification chart for listed model name.
EXTERIOR CONSTRUCTION
Full angle-iron frame
Stainless steel front, top, and sides
Dual pane thermal glass window on left hand door, solid right hand door n Tubular chrome handle with simultaneous door operation
Triple-mounted pressure lock door design with turnbuckle assembly
Removable front control panel
Solid mineral fiber insulation at top, back, sides and bottom
INTERIOR CONSTRUCTION
Double-sided porcelainized baking compartment liner (14 gauge)
Aluminized steel combustion chamber
Dual inlet blower wheel
Five chrome-plated racks, eleven rack positions with a minimum of 1-5/8”
(41mm) spacing
OPERATION
Dual Flow Gas system combines direct and indirect heat
Electronic spark ignition control system
Removable dual tube burners
Pressure regulator and manual gas service cut-off valve located in front
control area
Air mixers with adjustable air shutters
Solid state thermostat with temperature control range of 200°F (93°C)
to 500°F (260°C)
Two speed fan motor
1/3 horsepower blower motor with automatic thermal overload protection n Control area cooling fan
STANDARD FEATURES
Solid state manual control with separate dials to control thermostat and timer n 25” (635mm) adjustable stainless steel legs (for single units)
6” (152mm) adjustable stainless steel legs (for double sections)
Draft diverter or draft hood for venting (select one)
