5 ton Carrier AC Units- 2 Heat Pump CUs & 2 Fan Coils - $900 (Hollywood)
QR Code Link to This Post

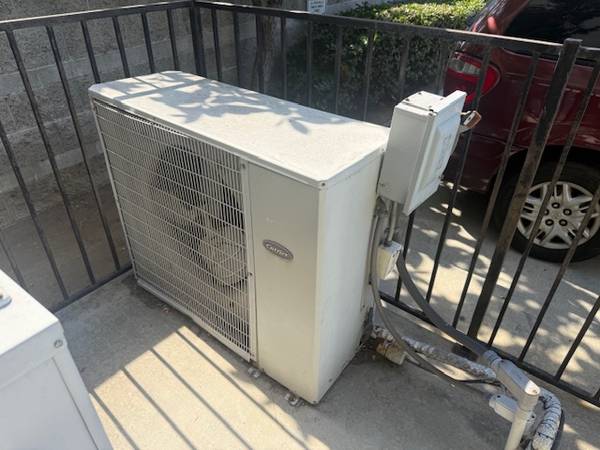

-Unit 1: 5 ton Carrier heat pump Condensing unit. Model # 38QR060C 511; serial # 2304X89609 (manufactured in 2004)- $900

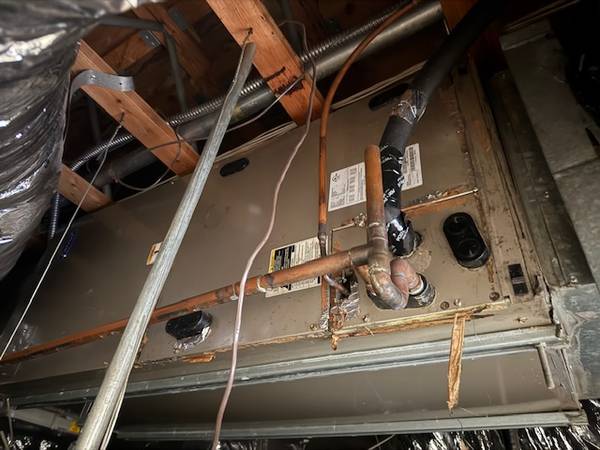

-Unit 2: Carrier Fan Coil w/ 5 ton capacity (paired w/ 5 ton CU above). Model # FB4BNF060; serial # 3604A74292 (manufactured in 2004)- $900
-Unit 3: 3 ton Carrier heat pump Condensing unit. Model # 38QR036C–321; serial # 0904X81586 (manufactured in 2004)- $700
-Unit 4: International Comfort Products Fan Coil w/ 4 ton capacity (paired w/ 3 ton CU above). Model # FEM4P4800A; serial # A110383086 (manufactured in 2011)- $700
If you take all, the total price is only $2500 (Cash only upon pickup).
NOTE: YOU MUST UNINSTALL, LOAD, 7 HAUL AWAY YOURSELF. YOU WILL RECEIVE NO HELP WITH THIS. PLEASE MAKE SURE YOU ARE PREPARED WITH THE SKILLS, TOOLS, HELPERS, AND VEHICLE FOR THIS.
NOTE: THE POWER IS OFF IN THE SUITE, SO THEY CANNOT BE TURNED ON UNFORTUNATELY.
3 of the 4 units are obviously quite old, but they all still work fine. Considering the age, and that they need to be uninstalled by you, I’m pricing them to move for way under market value. I’m just trying to get something here. So whether you’re buying it for use, or spare parts, make me an offer and I’ll likely say yes.
Spec details are below. Email me if you’re interested!
--------------------------------------------------------------------------------------------------------------
Unit 1 Specs: Carrier model 38QR060C 511- 5 ton heat pump condensing unit
• Model Series: 38QR
• Variant: 060C 511
• Nominal Cooling Capacity: 60,000 BTU/hr (5 tons)
• Refrigerant: Likely R 22 (given era and series)
• Voltage / Phase: Typically 208/230 V, single phase (residential)
• Efficiency Rating: Approximately 10 SEER (estimate for early 2000s R 22 unit)
• Application: Outdoor condensing unit for split system (to be matched with indoor coil/furnace)
• Warranty: none remaining
UNIT 2 SPECS: Carrier Model # FB4BNF060 fan coil
Manufacturer: Carrier (by United Technologies)
Manufactured in 2004 (Serial # 3604A74292)
Carrier FB4BNF060 (a 5-ton / ~60,000 BTU base-series fan coil)
Key Specifications
• Model: FB4BNF060 (5-ton / ~60,000 BTU nominal cooling).
• Configuration: Multi-poise (can be installed upflow, downflow, horizontal) per the base series documentation.
• Voltage: 208/230 V, single phase, 60 Hz typical. For example one listing shows “208/230” for this model.
• Refrigerant: Designed for R-410A (Puron) in the FB4C series.
• Coil & Cabinet features:
o Grooved-tube / louvered-fin coil design.
o Cabinet insulation approx. 1-inch thick (R-value ~4.2) and pre-painted galvanized steel.
o Sloped corrosion-resistant condensate pan design.
• Blower/Motor: Multi-speed ECM motor in this series.
• Cooling capacity: ~60,000 BTU/hour nominal for the size-“060” in this series. (One spec sheet lists “60000” for FB4CNP060L00).
• Dimensions (one listing for FB4BNF060): Intake approx 19″ × 11″, overall length 29″, width 31″, height 53.5″.
• Motor FLA: One listing says motor FLA (full load amps) ~5.4 amps.
• Warranty: none remaining
UNIT 3 SPECS: Carrier (by United Technologies) Model Number: 38QR036C–321- 3 ton heat pump condensing unit
Specification Detail
Model Series 38QR (Carrier “Comfort” Series – Split-System Condensing Unit)
Type Central Air Conditioner – Outdoor Condensing Unit
Cooling Capacity 36,000 BTU/hr (3 tons)
Refrigerant R-22
Compressor Type Reciprocating
Electrical Typically 208/230V, single-phase, 60 Hz
Refrigerant Connections 3/8” liquid line, 3/4” suction line (typical for 3-ton)
SEER Rating Approximately 10 SEER (standard for early 2000s models)
Year of Manufacture 2004 (from your serial number 0904X81586)
Application Residential or light commercial split system
Tonnage Explanation
The “036” in the model number → 36,000 BTU/hr ÷ 12,000 = 3 tons
Notes
• Warranty: none remaining

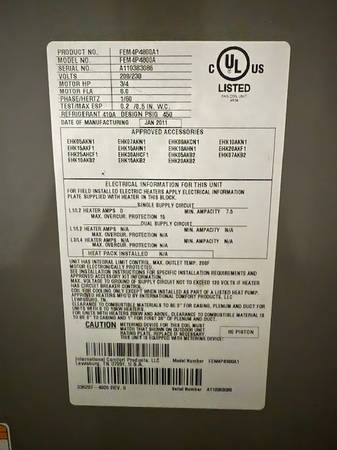

UNIT 4 SPECS: International Comfort Products Model # FEM4P4800A fan coil
Manufacturer: international comfort products, LLC
Manufactured January 2011
Model FEM4P4800A, manufactured by International Comfort Products LLC, presented in the “boat format” (list) style you requested:
• Model Series: FEM4P
• Model: 4800A
• Nominal Capacity: ~ 4 tons (based on “4800” size code)
• Refrigerant: Designed for R 410A systems
• Connection Sizes (from spec sheet):
o Liquid line: 3/8″ I.D. sweat for this size series.
o Suction line: 7/8″ I.D. sweat for the 4800 size.
•
• Motor / Blower: ECM 5 speed motor on FEM4P variants.
• Refrigerant Metering Device: Factory installed piston metering device (with Teflon ring) for these models.
• Cabinet and Construction:
o Multiposition installation (upflow or horizontal left as standard; convertible to horizontal right or downflow with accessory kit)
o 1″ thick cabinet insulation with an R value of ~4.2
o Leak rate tested: ≤ 2% leakage at 1.0 in. W.C. for the unit cabinet.
• Dimensions (for “4800” size):
o Height: 49 5/8″
o Width: 21 1/8″
o Depth: 22 1/16″
•
• Filter size (for “4800” size): 19 7/8″ x 21 1/2″ (as one listing notes)
• Line Set Application: Suitable for matching with split system outdoor units and indoor air handlers in multi position installations.
• Field Installed Options: Compatible with field installed electric heater packages (5 kW–30 kW) available separately.
• Warranty: none remaining
