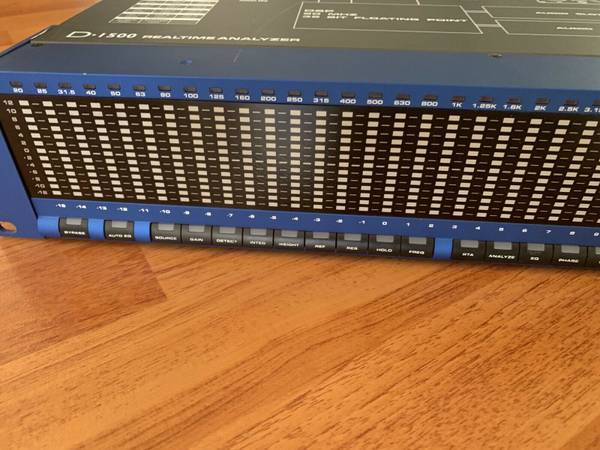

Samson D-1500 Spectrum Analyzer RTA Great Deal!!! - $600 (Los Angeles)
QR Code Link to This Post
If you don't know what kind of acoustic environment you are dealing with, even the best equipment can leave your sound lacking its detail and presence. That's where the D-1500 Real Time Analyzer comes in. With 31 bands of EQ analysis, what could have once taken you hours to do can now be performed in minutes, giving your audio output a true sonically flat frequency response.
• 31-band RTA
• Large LED display
• Signal generator (sine, white, pink)
• Test Mic Input
• Phase Correlation & VU Meters
• Linkable via MIDI or D·Net System Interface
• The D•1500 is a powerful and accurate audio measurement device with 31-bands of real time frequency analysis. What would once take you hours to do, can now be performed in minutes. And the result, your audio system is set to a true, sonically flat frequency response, or to your own custom pre-set response curve that you’ve stored in the D•1500’s internal memory. This process is simplified with
• the D•1500 thanks to its large LED display, (which is extremely easy to read in any live sound setting) simple user interface and powerful equalization correction algorithms when connected to a D•2500. In addition to the RTA, the D•1500 includes a Phase correlation meter, VU level meter, and a Signal Generator capable of producing White or Pink Noise as well as a tunable Sine Wave. The D•1500 includes a balanced microphone input, with phantom power, that will work with just about any test measurement microphones, although we recommend a microphone with an extended and linear frequency response such as Samson’s MM01 measurement microphone.
The D•1500 features standard MIDI implementation or Samson’s D•Net, enabling device-to-device linking for creating larger audio systems or interfacing to a personal computer. When linking the units you see the full power of the D•Class system. With a basic MIDI connection, you can have the D•1500 RTA display the D•1500 can be fitted with the DN1 D•Net network card. Samson’s D Net is a high-speed communication protocol for connected multiple D•Class units, like
Like all D•Class models, the D•1500 features an advanced 32-bit point floating processor
• DSP interface to high quality converters with 24-bit audio resolution and sample rates up to 96kHz for pristine audio quality. You can even upgrade your D•Class units to premium Analog-to-Digital and Digital-to-Analog I/O (Input/Output) converter boards, keeping your D•Class system up to date with the best technology, and sound, far onto the future.FEATURES> 31-band, Digital Real Time Analyzer accurately measures the frequency response of any sound system.> Large frequency LED display plus custom, back-lit Liquid Crystal Display for easy readability in any live sound environment.> The RTA has adjustable meter Resolution that lets you zoom in and out on your measurement, and adjustable Frequency range for RTA allowing you to make tighter measurements.> On-board Phase Correlation meter.> The D•1500’s display can be converted to a large VU Level meter that simultaneously displays both Peak and VU levels.
