WOW! COMCO MICRO-ABRASIVE BLASTING SYSTEM, MICROBLASTER CONTROL & DUST - $3,900 (Pico Rivera)
QR Code Link to This Post
This is a Micro-Abrasive Blasting System in working condition.
What is Micro-Abrasive Blasting?
Micro-abrasive blasting is a deceptively simple process. Often compared to a miniature precision sandblaster, Comcoʼs MicroBlasters® work by uniformly mixing clean, dry air with abrasive particles as small as 17.5 microns. The mixture is then propelled out of a nozzle tip at high velocity resulting in an abrasive stream that is tightly focused and easy to control. The type of abrasive, air pressure, and size of the nozzle opening makes it easy to keep these factors constant – delivering a high degree of repeatability with every blast. Micro-abrasive blasting is both cost effective and environmentally friendly.

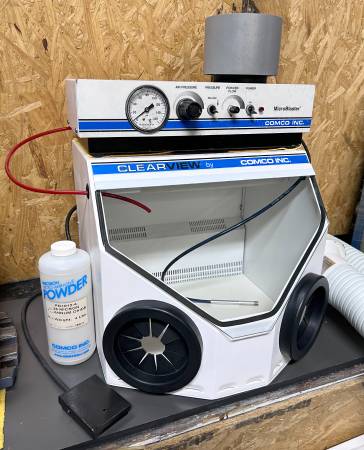

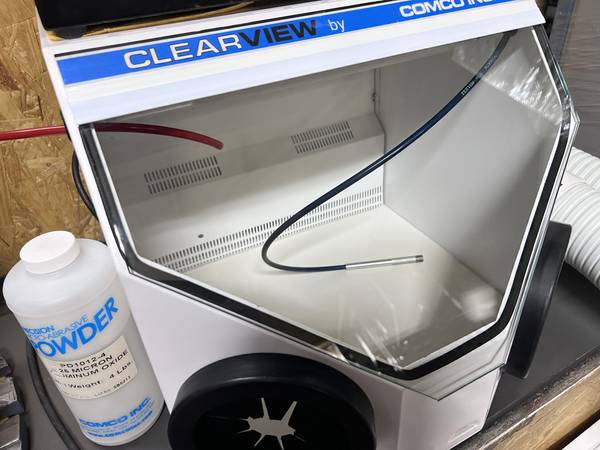

Clearview Workstation Model # WS6000-1
The Comco 'Clearview' Workstation is the most popular micro blasting cabinet. Designed to offer a clear, well-lit workstation with plenty of space for working on small to medium-sized parts, yet compact and designed to allow controlled airflow through the cabinet to ensure that your abrasive powder ends up in your dust extractor, not in the room.

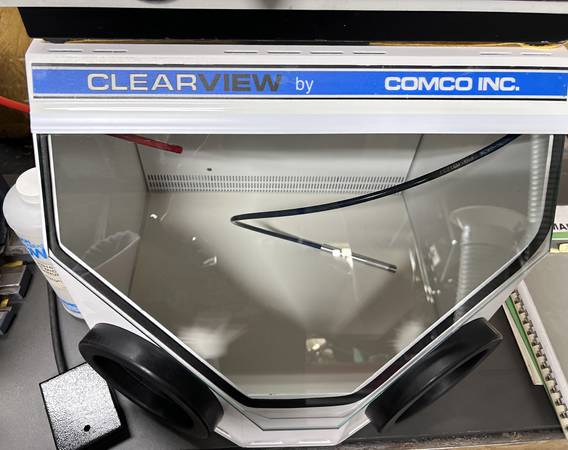

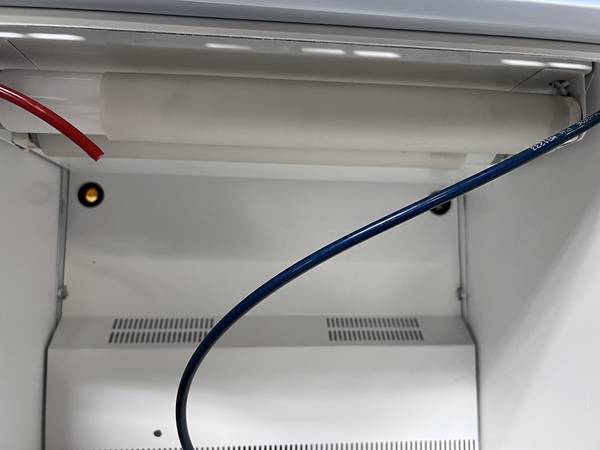

A large hinged window provides operators with ample visibility, and the two fluorescent lamps clearly illuminate any parts, also helping to reduce shadowing.
The handholes are ergonomically angled and spaced to allow operators comfort when using the system for extended periods of time.
The Clearview abrasive blast cabinet measures 406mm wide x 406mm deep x 355mm high (external) 16" x 16" x 14".

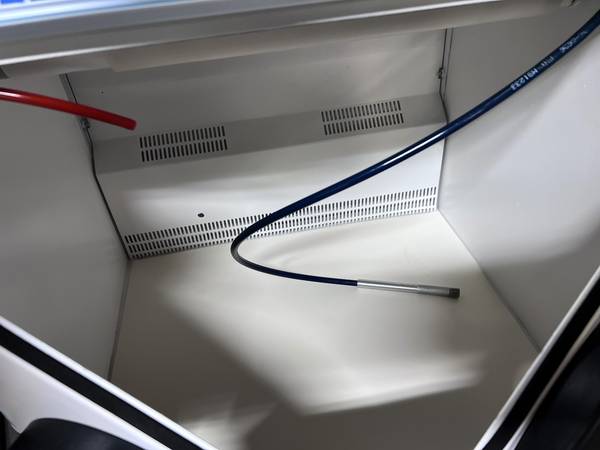

Internal workspace dimensions are 381mm wide x 305mm deep x 280mm high. 15" x 12" x 11".
Window: Tempered Glass, 394mm x 260mm / 15.5" x 10.25"
Power: 115v, Single Phase.

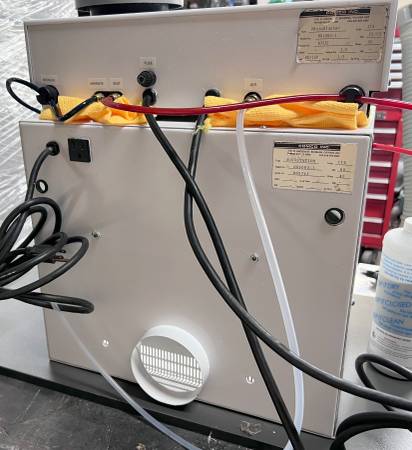

MicroBlaster Model # MB1000-1
This lightweight blasting unit fits easily on top of any workbench, conserving valuable shop space. The 2 lb. capacity powder tank is quick and easy to refill.
The patented Modulator and Comco’s exclusive Pinch Valve System combine to deliver consistent media flow with a rapid “start/stop” response.
Every Comco MicroBlaster® is built tough to perform day after day in multiple shift, high volume production environments, yet is an affordable choice for shops requiring micro-abrasive blasting only a few days a week.
• Quality Built / Value Priced
• 2 lb. Abrasive Tank with Quick Fill Feature
• Lightweight Bench-Top Unit
• Patented Modulator System for Consistent Powder Flow
• Exclusive Pinch Valve Design to Reduce Maintenance
• Engineered for Simplicity & Reliability
Applications:
• Cutting Slots in Silicon Wafers
• Removing Laser Slag on Stents
• Peening Stainless Surgical Instruments
• Deburring Laser Machined Fuel Injector Ports
• Removing MgO from Thermocouples
• Cleaning Turbine Blade Orifices
• Conformal Coating Removal
• Deburring Hypodermic Needles
• Cleaning & Texturing Injection Mold Tooling
• Engraving Optical Lens Elements
• Deburring Swiss & Precision Machined Components
• Surface Preparation on Polymer & Alloy Tubes

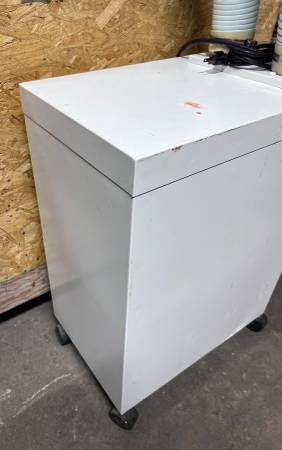

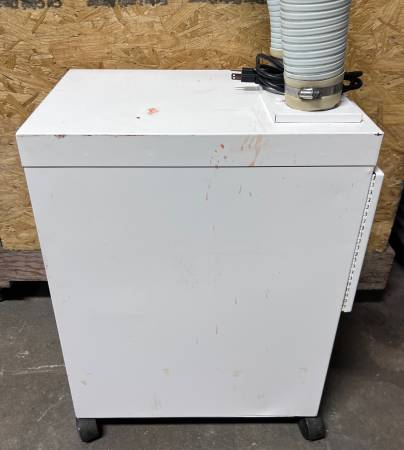

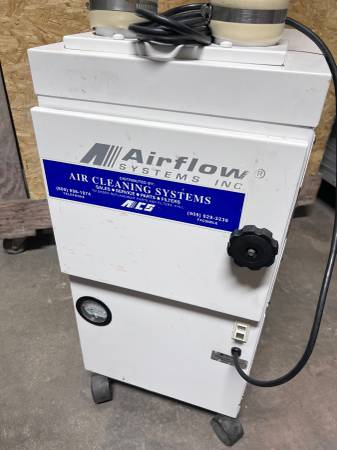

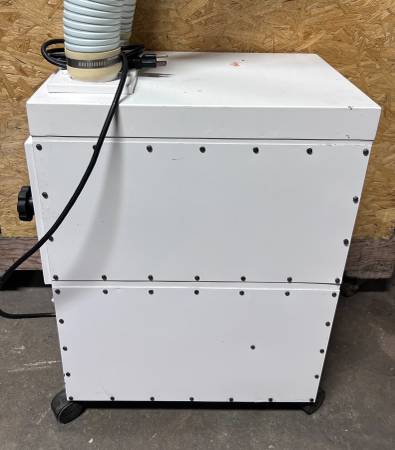

Airflow Systems Dust Collector Model # 66-0
Complete, self-contained unit: Versatile, easy to use; no installation required.
High efficiency 3-stage filtration: Provides up to 99.97% filtration efficiency.
Direct-drive blower: Higher static pressure, longer filter life and greater reliability; non-sparking; no belts or pulleys to replace.
Non-electrostatic operation: High reliability, low maintenance.
Narrow width design: Permits access and maneuverability in tight spaces.
Plug-in operation with any 115V outlet: Can be used anywhere, no special wiring required.
Blower Pkgs (HP): .50
Noise Level (dBA): 61
Electrical: .50 HP - 115V/1/60, 7.4 amps, std
Nominal CFM: 120 - 250
Dimensions
Width: 14.00”
Height: 28.00”
Depth: 21.00”

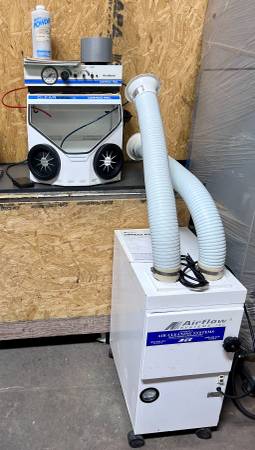

Comes as shown in pictures.
Specifications are subject to verification.
