Yamaha Electone E70 Modded to CS80 Synthesizer Keyboard Organ - $1,000 (Glendale)
1733 Gardena Ave near Suite A
QR Code Link to This Post

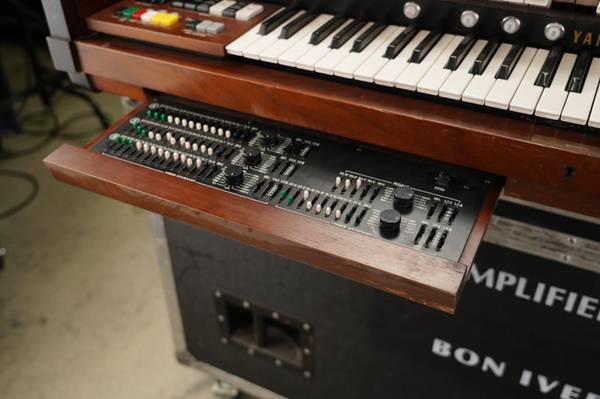

PHYSICAL CONDITION: Fair - Note that this specific Electone E70 is heavily modified to sound and function like a Synthesizer. The original chassis bottom portion was sawed off, and the bottom was sealed with the top lid, making it more "portable". Various other filters, oscillators, and Envelope controls have been added to the synth on the top row.
It essentially includes 2 polyphonic and 1 mono synth in one. Numerous scuffs and abrasions can be seen all around the synth. Two of the keys are stuck up, sitting higher than the rest of the keyboard. Will need some work to get corrected. Otherwise, everything else is intact and in good solid shape.
INVENTORY #55960
BRAND: Yamaha

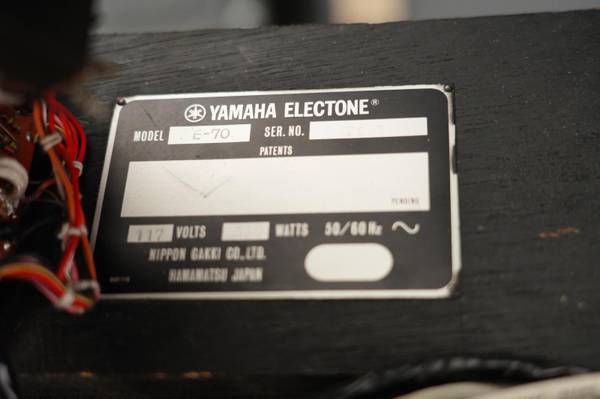

MODEL: Electone E70 / CS80
FUNCTION: Synthesizer Organ

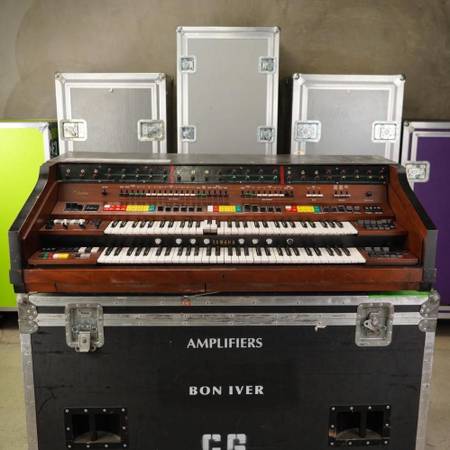

PRODUCT DESCRIPTION: This listing is for a Yamaha Electone E70 Modded into a CS80-style Synthesizer Keyboard Organ from the personal recording and touring arsenal of the band Bon Iver.
This modified Yamaha E70 organ has been transformed into a powerful, fully programmable synthesizer, incorporating two polyphonic and one monophonic synths with CS80-like analog filters and P.A.S.S technology. The E70 offers seven-voice polyphony, aftertouch, a versatile arpeggiator, a drum machine, and loads of CS80 style analog goodness. It includes multiple outputs for mixing up to seven sounds and supports detunable oscillators with unique DAC-based waveforms.
Key Stats:
Weight: 140 lbs
Polyphony: 7 voices for each polyphonic synth (2 polyphonic synths)
Monophonic synth: 2 oscillators per note
Outputs: 7 individual outputs (2 main, 3 upper, 2 lower, 1 bass/mono)
Control sections: 3 (upper keyboard, lower keyboard, pedal/extra keyboard)
Oscillators: 2 per voice, detunable, with DAC-based waveforms (saw, sine, square)
ON THE BACK:
IEC Power Cord input
Upper Sustain
Lower Sustain
Main Out 1
Main Out 2
Upper Organ
Upper Synth
Lower Organ
Lower Synth
Bass Synth
1/4 Un-Marked and unknown
1/4 Un-Marked and unknown
Volume Pedal
ACCESSORIES INCLUDED:

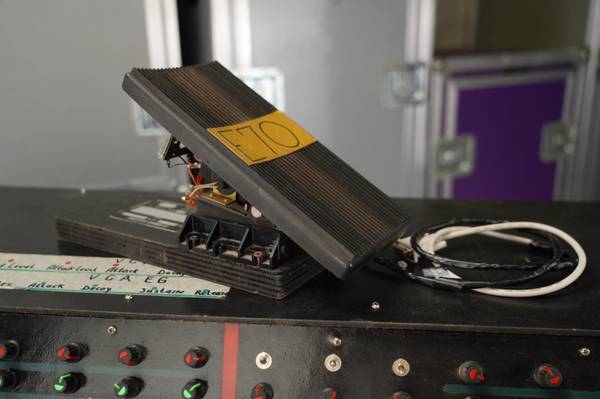

Volume Pedal
NOTE: The road case shown in the photos is not associated with this keyboard and is not included.
WEIGHT: 140 lbs.
DIMENSIONS: 51.75" x 17" x 30.5"
$1000 + Tax or Best Offer
Sold by Techno Empire Inc in Glendale
technoempire.com
