TEMPERATURE DISPLAY PANEL METER NEWPORT Q2454KDF1 3½DIG 9-32V TC=J,K,T - $35 (LAKEWOOD)

TEMPERATURE DISPLAY PANEL METER NEWPORT Q2454KDF1 3½DIG 9-32V TC=J,K,T 1

TEMPERATURE DISPLAY PANEL METER NEWPORT Q2454KDF1 3½DIG 9-32V TC=J,K,T 1 thumbnail

11723 DEL AMO BLVD. near 605 FREEWAY

condition: like new

make / manufacturer: NEWPORT QUANTA

model name / number: Q2454KDF1

more ads by this seller

QR Code Link to This Post

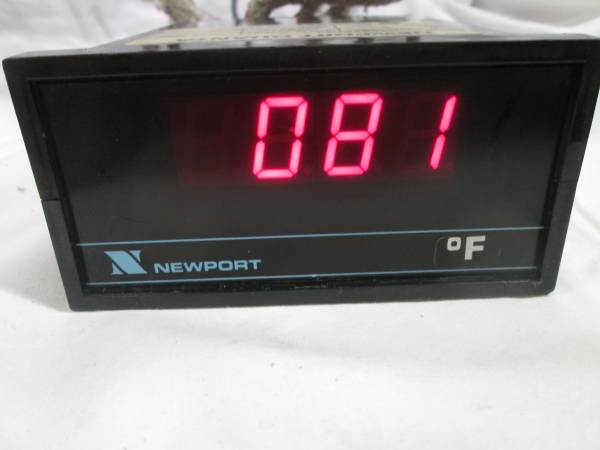

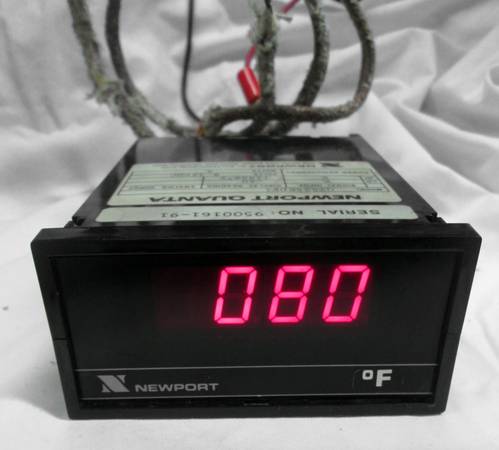

TEMPERATURE DISPLAY PANEL METER
NEWPORT QUANTA

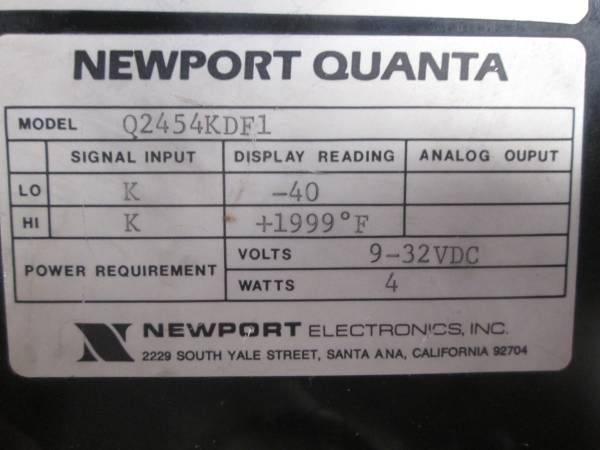

Q2454KDF1
3½-DIGITs 9-32Vdc TC=J,K,T
2 for ±1,999 counts (3 1/2 digits),
4 for LED, 9-32 Vdc (isolated) (BQ24 or BQ94),
5 for 4-20 mA, sink (high-compliance), nonisolated. (BA02),

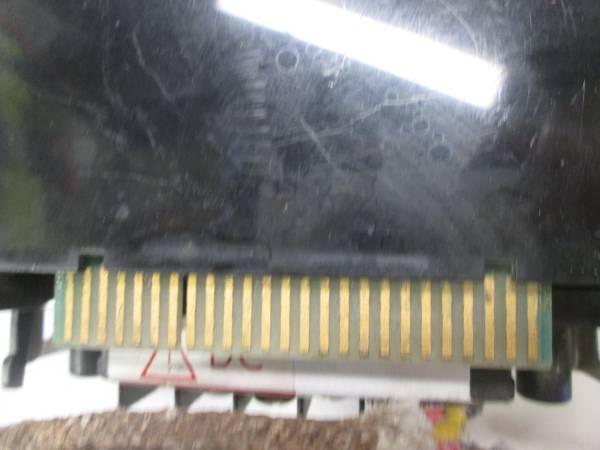

4 for BCD (isolated, latched, buffered, byte addressable). Includes 50-pin mass-termination connector. (BDD2)
KDF1 for Thermocouple input types J, K, and T -40 to +1999 °F (Q2000/Q3000) or -40.0 to +999.9°F (Q8000/Q9000) (BSCK),

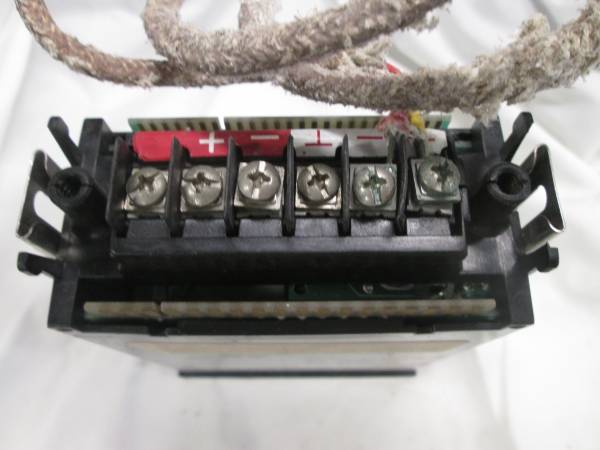

TC WIRING YELLOW TO +, RED TO -.
Sorry, I do not have the mounting hardware.

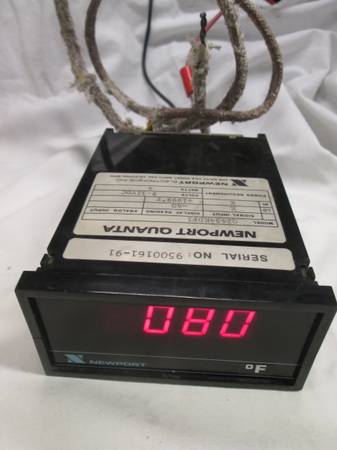

The gnarly looking TC is included.
