1976 Minolta XL-660 Sound Camera - $45 (Downey)
QR Code Link to This Post

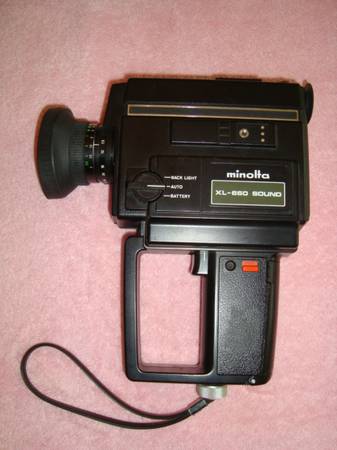

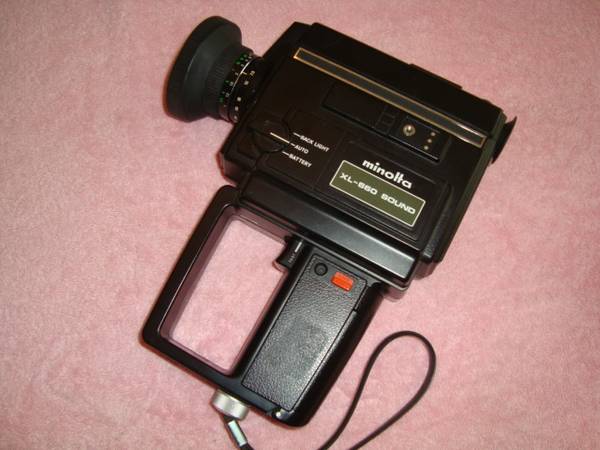

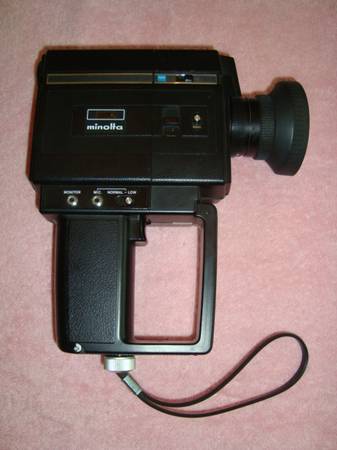

Minolta XL-660 Sound camera not tested.
In excellent physical condition.
marketed in 1976
production: 1976-1978

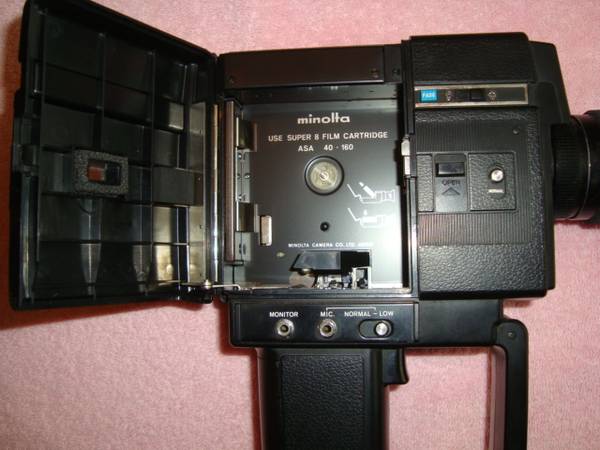

sound and silent super 8 cartridge
lens: Minolta Zoom Rokkor-Macro f: 1.7 \ F: 7.5-45 mm
zooming ratio: 6x
focusing: manual, split image
macro focusing: yes
zooming: auto and manual
filter size: ?
viewfinder: single lens reflex with adjustable eyepiece
exposure: auto exposure control; TTL EE, CdS cell
backlight control button: yes
film speed: auto for 40 and 160 ASA
CCA filter: built-in 85A filter, with filter selector
shutter opening angle: 220 degrees, eXisting Light system
fading: auto fade-in/fade-out
filming speed: 18 fps
sound: single-system, magnetic recording on super 8 film
amplifier: 1 IC, 6 Transistors and 5 Diodes; with AGC, Automatic Gain Control
recording level control: auto; Normal and Low
sound sockets: Microphone (Normal & Low settings), Monitor
cue light: yes
Remote control socket: yes
cable release socket: no
movie light contact: screw type
film counter: yes
handle: fixed
film drive motor: DC micromotor
battery check button:yes
power source: 6 x AA batteries only
external power jack: 9 V DC
weight: 1360 g
dimensions: 69 x 186 x 234 mm
tripod socket: 1/4"
made in Japan by Minolta.
Enter zzyzx in the Craigslist search window to see all my listings.
