Epilog FUSION EDGE 24 CO2 LASER - $16,000

‹ image 1 of 9 ›
Epilog FUSION EDGE 24 CO2 LASER 1
Epilog FUSION EDGE 24 CO2 LASER 1 thumbnailEpilog FUSION EDGE 24 CO2 LASER 2 thumbnailEpilog FUSION EDGE 24 CO2 LASER 3 thumbnailEpilog FUSION EDGE 24 CO2 LASER 4 thumbnailEpilog FUSION EDGE 24 CO2 LASER 5 thumbnailEpilog FUSION EDGE 24 CO2 LASER 6 thumbnailEpilog FUSION EDGE 24 CO2 LASER 7 thumbnailEpilog FUSION EDGE 24 CO2 LASER 8 thumbnailEpilog FUSION EDGE 24 CO2 LASER 9 thumbnail
condition: excellent

QR Code Link to This Post

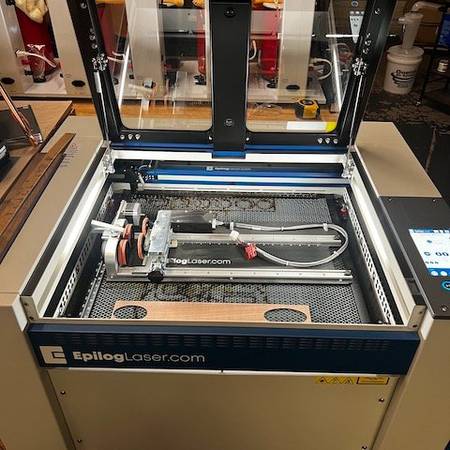

Epilog's FUSION EDGE 24-inch 60-w CO2 laser engraver delivers precision and power, making it an ideal tool for a variety of applications, especially in signs, plastics, leather, and wood engraving. This machine boasts a robust 60W power output, waterless cooling, and utilizes an air assist system for marking clean, detailed results. The Epilog FUSION EDGE is designed for ease of use with its computerized operation, dual camera system, and includes a rotary tool for added versatility. Whether you're working with jewelers or creating custom signage, the Fusion 24"x24" CO2 laser is engineered to provide exceptional performance and reliability.
I've had this laser since 2022 and it has only been used for a handful of projects. It's just been sitting for the last two years. We primarily do metal work and find myself just using our fiber laser for that stuff. It's a great machine and really easy to use. The Epilog community is also super accessible and helpful. Great American-made laser, I wish I could keep but sadly need the money and space. ROTARY, STAND and AIR BLOWER INCLUDED!

DETAILS:
Laser Machine:
FUSION EDGE 24

Business Series
Work Area:
24″ x 24″ (610 x 610mm)

Material Thickness:
10″ (254 mm)

Laser Tube Types:
CO2: air-cooled, metal/ceramic Waveguide tube, 10.6 micrometers

Laser Tube Wattages:
CO2: 50 or 60 watts

IRIS™ Camera System:
2 overhead

Wireless Connectivity:
Included

Included Lenses:
CO2: 2″

Optional Lenses:
CO2: 1.5″ or 4″

Resolution:
Fully-flexible & user-controlled from 75 – 1200 dpi
Maximum Engraving Speed (inches/meters per second):
120 IPS (3.05 m/s) with 5G acceleration. Computer-controlled in .001 increments up to 100%. Color mapping feature links Speed, Power, Frequency, and Raster/Vector mode.
Print Driver & Software:
Laser Dashboard™, Epilog Job Manager™

Internal Memory:
Store multiple files up to 1 GB. Engrave any file size.
Operating Modes:
Optimized Raster, Vector, and Combined mode.
Super-Silent Cooling Fans:
Included

Motion System:
Brushless DC Servo Motors

X-Axis Bearings:
Ground & polished stainless steel, Teflon-coated, self-lubricating bearings. Dual blocks on X-axis for greater rigidity

Belts:
Advanced B-style double-wide Kevlar precision drive belts.

Job Trace:
Included

Auto Focus:
Included

Touch Screen:
Included

Included Table:
Vector Cutting Table (Grid-Style)

Air Assist Pump:
Optional

Max Table Weight:
Static: 90 lbs (40.8 kg), Lifting: 60 lbs (27.2 kg)

Size (W x D x H):
41.52″ x 32.81″ x 38.04″
1055 x 834 x 967 mm

Weight:
225 lbs (102 kg)

Electrical:
Voltage: Auto-switching 100-120, Amp draw-MAX: 13A
Voltage: Auto-switching 220-240, Amp draw-MAX: 6.5A
50 or 60 Hz, single phase

Ventilation:
350-400 CFM (595-680 m3/hr) external exhaust to outside or internal filtration unit required. One output port, 4″ (102 mm) diameter
