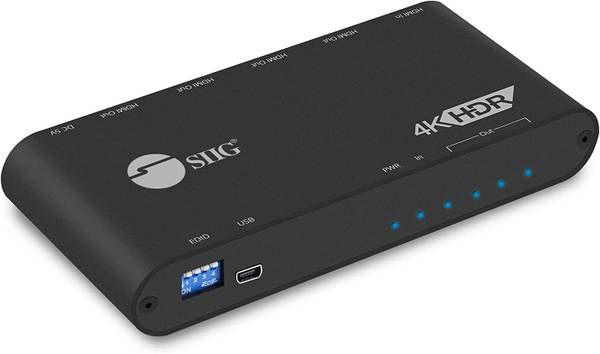

1x4 HDMI 4K HDR Splitter with EDID - $75 (WOODLAND HILLS)
QR Code Link to This Post
Chipset: EP91X4
Compliant with HDCP 2.2/1.4 specification
xvYCC, x.v.Color and Deep Color
Resolution: up to 4K@60Hz YUV4:4:4 8bit, 4K@60Hz YUV 4:2:0 10bit HDR
Video bandwidth: Up to 18Gbps (single-link 600MHz)
Video: 480p/720p/1080i/1080p/HDR 4K@60Hz (YUV 4:2:0 10bits)/4K@60Hz (YUV 4:4:4 8bits)
EDID modes:
Red LED: 4K@60Hz, 8/10/12bit, 3D, HDR, 7.1ch
Blue LED: 4K@60Hz, 8/10/12bit, 3D, HDR, 2ch
Green LED: Auto EDID analysis learning - use the EDID of the display with the lowest capabilities
Yellow LED: EDID learning - use the EDID of the display connected to HDMI Output 1
Audio: DTS-HD Master Audio, Dolby TrueHD, Dolby Digital, DTS, DVD-Audio, LPCM, SACD, MPCM
ESD protection: ±15kV Air / ±8kV Contact
HDMI cable length:
4K @60Hz: Up to 10 meters (5m/In ; 5m/Out)
1080p & 4K@30Hz: Up to 15 meters (5m/In ; 10m/Out)
Product:
Dimensions: 4.13" (L) x 0.59" (H) x 2.48" (W)
Weight: 0.27 lbs
Color: Pantone 425C
Housing material: Aluminum
Connector:
1x 19-Pin, HDMI, Type A, Female, Input
4x 19-Pin, HDMI, Type A, Female, Output
1x Slide Switch for EDID Selection
