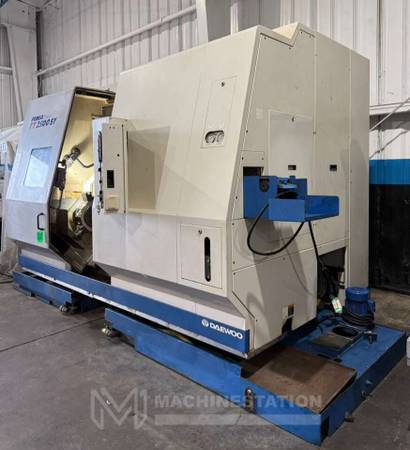

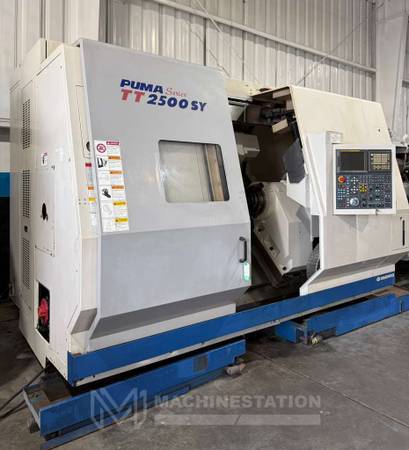

Used - Daewoo Puma TT2500SY Multi-Axis-CNC
QR Code Link to This Post
Make & Model: Daewoo Puma TT2500SY
Year: 2004
Condition: Used – Good
Equipped With:
Fanuc 18i-TB CNC Control
Heavy Duty Box Way Construction
Collet Chuck on Main Spindle (Capable 10″ Chuck)
Collet Chuck on Sub Spindle (Capable 10″ Chuck)
Sub Spindle
Servo Controlled Full C-Axis on Both Spindles
Both Spindle Synchronization
12 Station Live Tool Upper Turret
12 Station Live Tool Lower Turret
Y Axis Capability on Upper Turret
Tool Presetter
Coolant System
Chip Conveyor
Automatic Lubrication System
Live & Statics Tool Holders are Mounted on Turrets (As shown in the images)
Capacity:
Max Turning Diameter Upper Turret : 15.4″
Max Turning Diameter Lower Turret : 11.8″
Max Swing Over Bed : 31.5″
Max Swing Over Saddle: 24.4″
Max Turning Length: 13.8″
Max Bar Capacity Main Spindle : 3.0″
Max Bar Capacity Sub Spindle : 3.0″
Distance Between Spindle Centers: ″ ?
Travels:
X1 Axis Travel Upper Turret: 10.0″
X2 Axis Travel Lower Turret : 8.26″
Y Axis Travel Upper Turret: -2.4″/+2.4″
Z1 Axis Travel Upper Turret: 31.5″
Z2 Axis Travel Lower Turret : 35.4″
A Axis Travel: 31.9″ ( Sub Spindle )
C Axis: 360° (0.001°) Both Spindle
