ASTATIC 651 SMALL FORMAT PUSH-TO-TALK PALM-HELD MICROPHONE - $50 (Granada Hills)
San Fernando Mission Blvd near Paso Robles
QR Code Link to This Post

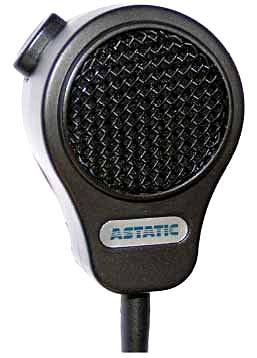

The Astatic 651 is a small-format squeeze-to-talk, dynamic microphone for critical communications applications. The 651 has a tailored frequency response providing clear transmission and maximum intelligibility of speech. The housing is built to withstand rough mechanical impact while the transducer resists atmospheric extremes. The 651 has a simple to operate DPDT long-life, trouble-free, leaf switch. It has a low-impedance output and is factory wired normally open. The 651 may be rewired in the field if a line shorting function is desired.
Features
For commercial public-address and paging applications as well as security, emergency and safety
Small size for inclusion into life-safety systems or other paging stations
Omnidirectional for forgiving pick-up of users that may not have experience with microphones
Low impedance (600 ohms) for long cable runs and hum resistance
Rugged polyester mic element resists effects of extreme temperature, moisture, acids, alkalines and solvents
Durable large-gauge wire grille
Molded plastic that is resistant to high impact
Permanently-attached 6ft (1.8m), heavy-duty, 4-conductor coiled cord with stripped and tinned ends
Specifications
Operating Principle: Moving Coil Dynamic
Polar Pattern: Omnidirectional
Frequency Response: 500Hz - 8KHz
Sensitivity: -49dBV (3.6mV) @ 1Pa
Impedance: 600 ohms
Cable: 6ft (1.8m) extended, four-conductor, two-conductor shielded, coiled
Switch: DPDT momentary leaf
Case: Impact-resistant plastic
Dimensions: See spec sheet (pdf)
Net Weight [Mass]: 4.9oz [139g]
Packaged Weight [Mass]: 8.0oz [227g]
RF Immunity: Meets or exceeds EN55103-2, E1, E2, E3 and E4.
RoHS Compliant
