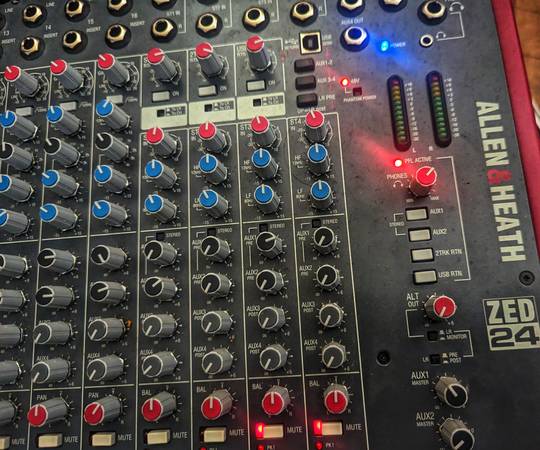

24 channel Allen and Heath mixer w/USB and hard-shell Gator case - $325 (Newhall)
QR Code Link to This Post
It's used, but in good shape – the church it was used at went with an even bigger board so they don’t need this one. Every channel works as it should.
24 Tracks total -
In addition to the sixteen mono channels there are four stereo channels, each with a main stereo input on jack sockets, and with the ability to take additional stereo inputs from phono or the USB audio inputs. Sixteen mic/line channels are provided on ZED-24 - plenty for mics or DI boxes for larger bands or demanding applications requiring more inputs than the ZED-14.
4 stereo line inputs, 3 with dual inputs.
All inputs have independent gain control.
DuoPre -
The ZED24 has new DuoPre pre-amps, which use a two stage design, with carefully controlled amounts of gain in each stage. When amplifying the signal from the XLR input, the gain range is huge - 69dB of range to be exact - and is very evenly distributed around the gain control, meaning better control of signal level. Most of the gain comes from the first stage, so unwanted noise is kept to a minimum. Line level signals are simply plugged into the second stage of the pre-amp by using the line input jack socket, which has the great advantage of less noise when using the line input.
EQ section -
The ZED-24 features a responsive 3-band, swept mid frequency design with “MusiQ” - optimized slope (or Q factor) for equalizing individual instruments. HF and LF also boast Xtra Boost giving you extra control.
Auxiliary sends -
4 aux sends are provided, of which 1&2 are prefade for foldback monitoring, and 3 & 4 post-fade for effects sends. A stereo signal can be sent from aux’s via USB to computer to create 2 separate record feeds independent of the main LR mix (1&2) and or used as FX sends (3&4).
USB
Getting audio to and from a computer is super easy! Simply plug in a USB cable to your ZED, select the USB routing on the mixer and the device on your computer and that's it! Quality audio to and from your PC or Mac. Three switches provide different send/return configurations for recording, playback and utilizing external FX.
Built Solid -
The ZED-24 utilizes individual vertically mounted channel circuit boards with each rotary control fixed with a metal nut to the front panel - making a much more robust product that will resist damage and give years of reliable use. ZED also has professional 100mm faders for ultimate control over your levels.
Allen & Heath ZED-24 Features:
16 mic preamps
4 stereo channels
3-band EQ
Insert points
High pass filter
Stereo imaging control on every channel
Channel mute switches
Stereo return
2-track return
Advanced monitoring facilities
1/4" and 3.5mm headphones outputs
Stereo record out
Alternative stereo out
Mono sum of LR output
Main LR
12-bar LR meters
Master controls for aux 1&2
USB connectivity
