Fender Pro Reverb Amplifier - 1967 Vintage Blackface + Extra Speaker (sherman oaks / van nuys)
QR Code Link to This Post
1967 Vintage Blackface

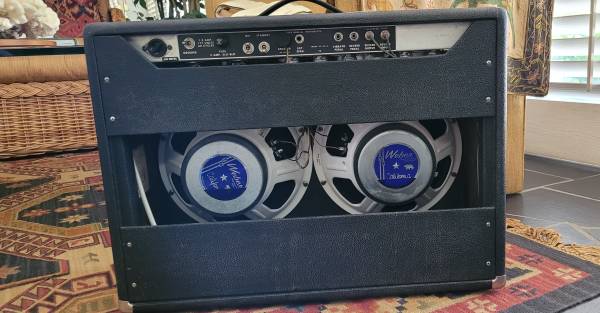

2x12
Fully Functional
Very clean & exceptional example of vintage PR
Excellent ++ Condition (see pics)
Also Included: 1 extra 12" Speaker =
Weber Ferromax C12N (now called 12F150) - see pic
Coveted Fender Workhouse
I am only the 2nd owner
Well cared for
Never gigged or transported - home & studio use only
Classic Fender Tone
All original vintage 1966/1967 components with exception of replacement speakers, upgraded quality tubes installed, upgraded caps and resistors - see detailed info below
All original vintage transformers date to 1966 - see details below
Sounds Superb & Looks Fantastic
The clean tones produced from this amp are smooth, robust, balanced, shimmering and crystal clear
EQ ranges are highly musical and tonally well rounded
A great platform for effects pedals too
Lush Reverb & Tremolo work perfectly
The front panel, knobs and grille cloth are mint
The original tolex is fully intact and in Excellent ++ Condition
There is one very small ding, the size of a penny, in the cabinet/tolex on one side - see pic

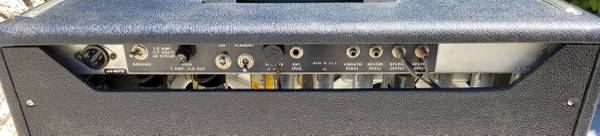

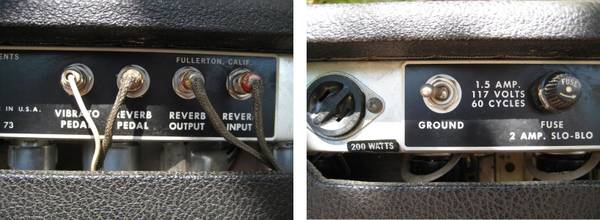

The original stock hardware includes: reverb pan, reverb bag, speaker harness, speaker jack with "F" logo cover, original tilt back legs, chassis straps, corners, handle, and metal sphinx glides (feet)
No rust or corrosion past or present
The cabinet is sturdy with no rattles or other noises
The Tube Chart is fully intact with crisp corners
-----
Other details =
Exterior Chassis Stamp SN # A 08096

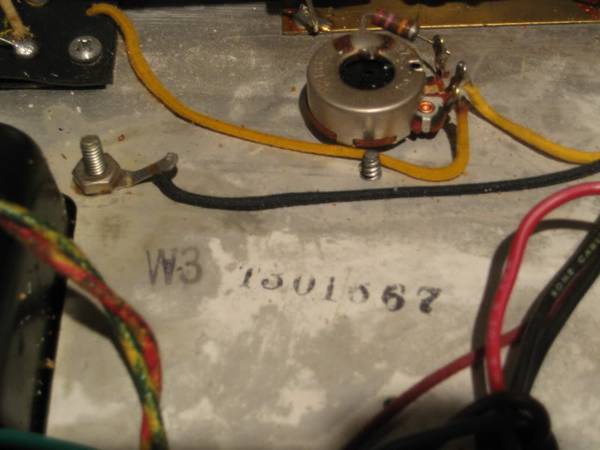

Interior Chassis Ink Stamp - T301867
Dating Code on Tube Chart reads 'QD' indicating April 1967
All original transformers, manufactured by Schumacher, are intact and date to 1966
Transformer codes are as follows:

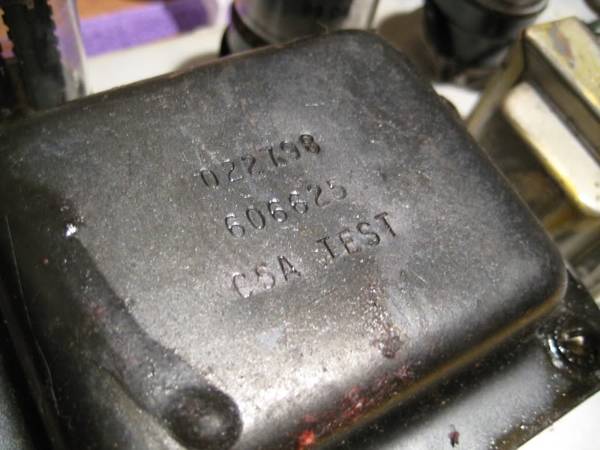

(i) Power - 606625................25th week of 1966
(ii) Output - 606-6-22............22th week of 1966

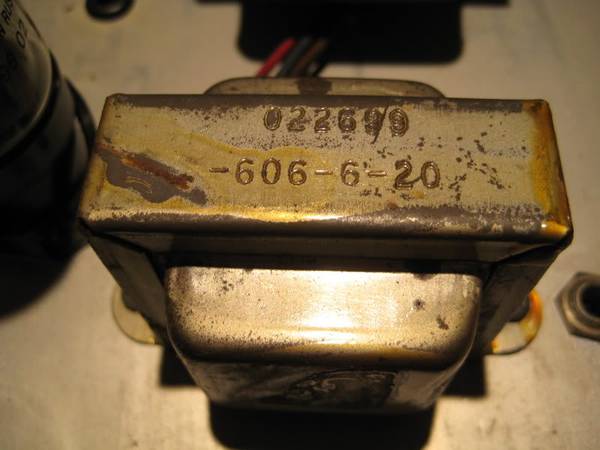

(iii) Choke - 606-6-20...........20th week of 1966
(iv) Reverb - 606645.............45th week of 1966
Professionally serviced =
Checked electrolytic filter caps, output stage, power supply, phase inverter
Replaced any out of spec capacitors & resistors
Cleaned all pots & jacks
Cleaned tube sockets
Freshly Biased Tubes
Grounded 3-prong power cable installed (original power cord included if wanted)
Tubes =
Excellent Quality & Fully Functional Tubes throughout
The 6L6 Power Tubes are a matched set of highly praised TAD 6L6 - STR - Killer Tone!
The Rectifier Tube is a NOS vintage GE 5AR4/GZ34
Most preamp tubes are an assortment of vintage NOS
For those in the know, I have included a listing of all the tubes installed in the amp (see pic)
Speakers =

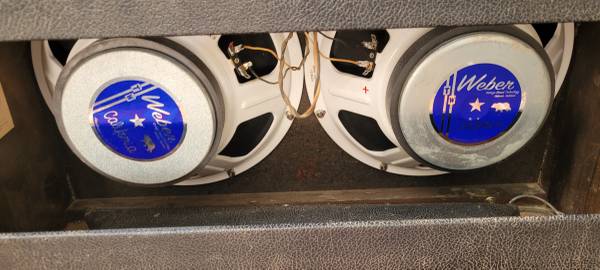

Non Original Speakers Include:
1 Weber California 12" (Ceramic, 8 ohms, 80 watts, larger H screen dome)
1 Weber California 12-F (Ceramic, 8 ohms, 80 watts, larger H cloth dome)
The "large H" diffuses the highs coming off the speaker. This makes it warmer in comparison to the paper dome.
Great 12" match for PR
Basically Weber's take on the JBL 12" from the 1960's.
Provides loud, clean tones, true Fender bell-like chime and nice tight bass
Warm & well rounded tones throughout the sonic spectrum

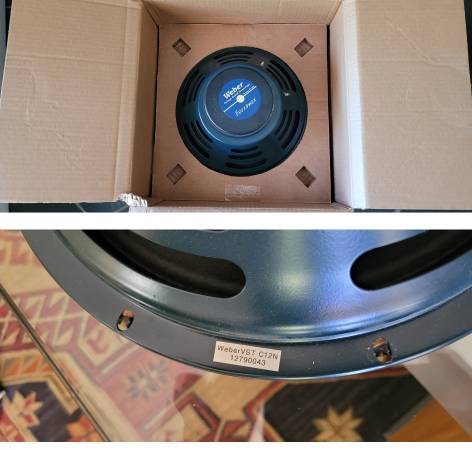

Also Included: 1 extra 12" Speaker =

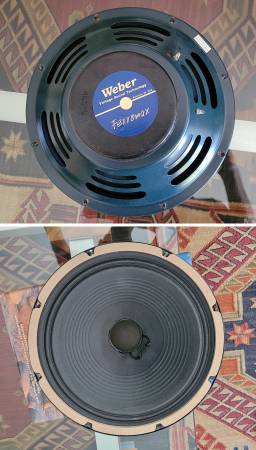

Weber Ferromax C12N (now called 12F150) - see pic
Mint Condition & Fully Functional
Great for vintage Fender blackface tone
Ceramic, 40oz, 8ohm, 25 watts, ribbed cone, 1 1/2" VC
Weber version of the Jensen C12N
Early model with the "Weber VST" name
Identical speaker to the Weber 12F150
Weber C12N is the model code that Weber used before changing it to 12F150
From Ted Weber site - "Replaces Chicago Jensen C12N and Oxford ceramic 12’s. Warm, smooth breakup, aggressive, punchy, loud"
Amplifier also comes with =

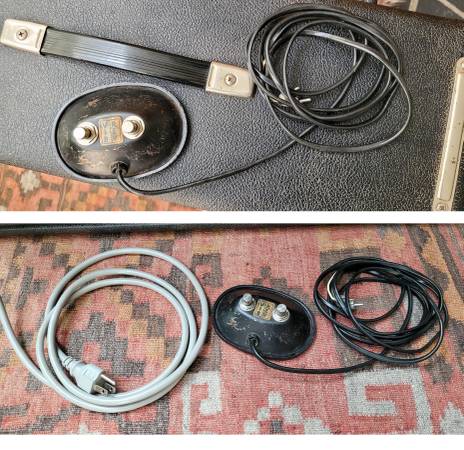

Original Vibrato/Reverb foot switch
Vintage NOS Heavy Weight Vinyl Amp Cover with Gibson logo in Mint Condition. No Tears. Fits amp perfectly.
Reason for selling=
Simply downsizing and moving into a new direction
This 1967 Pro Reverb is a jewel of an amp and sounds every bit as good as a Vintage Blackface Fender should
These amps are growing in value. Investment gain/potential is very strong.
No Trades
$$ Open to Offers
--------------------------------
Fender Pro Reverb Info
Production years
1964 -1967 blackface circuits AA165, AB668
1968 -1982 silverface circuits AA1069, AA1009, AA270
Tube layout
Blackface model tube layout (Seen from behind, V1 is to the right side)
V1 12ax7 = Preamp normal channel
V2 12ax7 = Preamp vibrato channel
V3 12at7 = Reverb send
V4 12ax7 = 1/2 Reverb recovery and 1/2 gain stage for vibrato channel
V5 12ax7 = Vibrato
V6 12at7 = Phase inverter
V7 6L6 = Power tube #1
V8 6L6 = Power tube #2
V9 GZ34 = Rectifier tube
