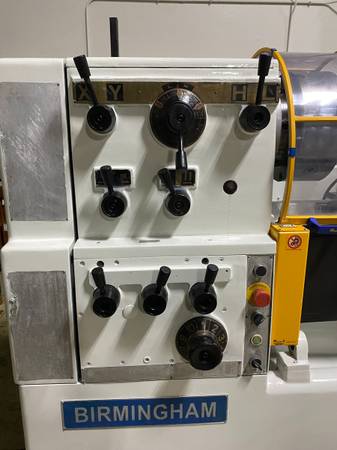

2003 BIRMINGHAM 20" x 60" Manual Engine Lathe w/ 12" Chuck, 3" Hole - $10,500 (Chatsworth)
Plummer St near De Soto Ave.
QR Code Link to This Post
Shipping available
Financing available
Call or text show contact info
10 HP Main motor
12" Diameter 3-Jaw Chuck
Quick Change Tool Post

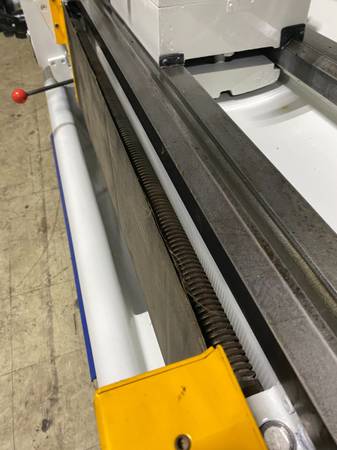

Thread and lead screw cover
Coolant System
One-Piece Cast iron base
D1-8 spindle with 3-1/8" Bore
12 Speeds from 45-1, 600 rpm
Main Spindle Hardened & Precision ground
Bed made on fine grain high tensile cast iron
Bedways induction hardened & precision ground
All gears & shafts hardened & precision ground
Swing over bed 20"
Distance between centers 60"
Swing over cross slide 11-7/8"
Width of bed 13-3/4"
Spindle nose D1-8
Diameter of spindle thru bore 3-1/8"
Taper of spindle center MT no. 7
Spindle speeds (12) 25 to 1600 rpm
Longitudinal feeds (35) 0.0022 to 0.0612 in/rev.
Cross feeds (35) 0.00048 to 0.01354 in/rev.
Cross slide travel 12-15/16"
Top slide travel 5-1/8"
Tailstock quill diameter 3"
Tailstock quill center taper MT no. 5
Tailstock quill travel 7"
Main motor 10HP
Electrical power required 230V, 60 Hz, 3-Phase
Dimensions 114" x 46" x 57"h
Weight 5,200 lbs
