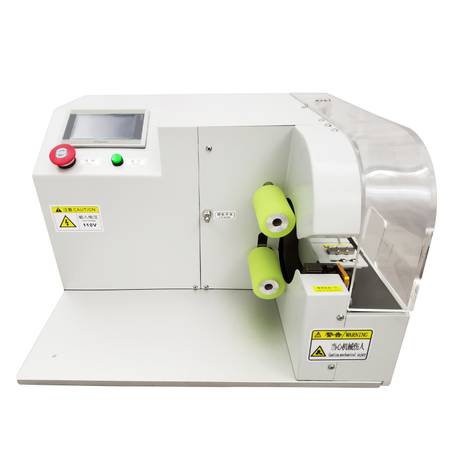

110V Automatic Automotive Wiring Harness Tape Winding Machine #053044 - $2,749 (Rancho Cucamonga)
QR Code Link to This Post
*Cash Preferred*
Description:
Automatic tape winding machine is a very important automatic device in complex wire harness forming and mechanical harness industry winding work. It can ensure the whole production workflow to reach a high automation standard, which can greatly reduce the work labor intensity, improve the production efficiency and reduce the production and operation cost, it is a very excellent tool!
Product Parameters
Model: WX-303X
Voltage: 110V
Diameter of wire: 0.12-"0.98"(3mm-25mm)
Main engine speed: 4500r/min

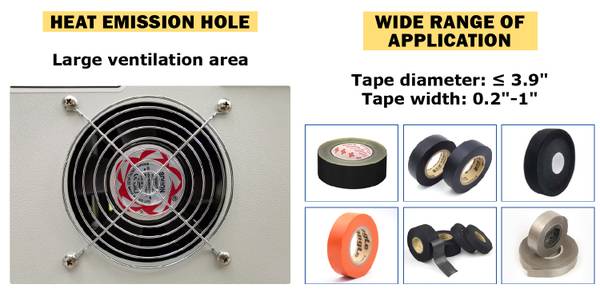

Tape diameter: ≤ 3.9"(100mm)
Tape width: 0.2"-1"(5mm-25mm) (other sizes can be customized)
The inner hole size of the tape: Φ37mm, Φ32mm;
usually Φ37mm (Please inform us of other sizes in advance)
Winding length: Infinite length (More suitable for
winding long wires, preferably longer than 20in/50cm)
Scope of applicaiton: High temperature tape, mica tape, ceramic tape, PVC, vinyl, velvet cloth tape, acetate tape, electrical tape
Net weight/Gross weight: 106.9lbs(48.5kg) / 134.5lbs(61kg)
Item included:
1 set of 110V Automatic Automotive Wiring Harness Tape Winding Machine #053044
* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *
Los Angeles Warehouse
11241 Jersey Blvd Unit 102,
Rancho Cucamonga, CA, 91730
United States
Tel: show contact info show contact info
Pickup Hours:
Monday - Friday 1:30pm--5:00pm
* Before pickup, please Call to Make appointment.
Notice
1.Limited stock, please purchase ASAP if you want it.
2.Before pickup, please call us to make sure. Please tell us our item number when you contact with us.
3.The price will be adjusted when there's large fluctuations in exchange rates and raw material costs.
