Spring Tensile Compression Testing Machine with Printing #056251 - $665 (Rancho Cucamonga)
QR Code Link to This Post
*Cash Preferred*
Description:

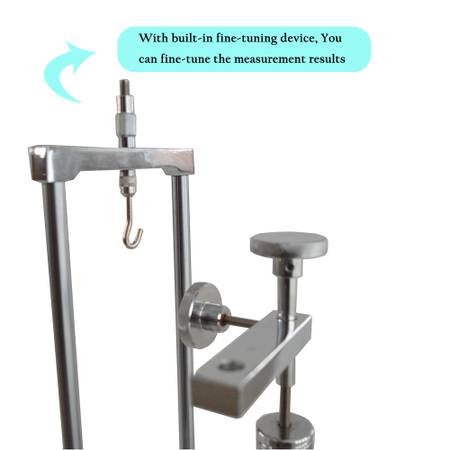

With printing spring pull pressure testing machine is a special instrument for testing the deformation and load relationship characteristics of tensile and compression spring. The printing spring pull pressure testing machine is suitable for tensile and compression spring under a certain working length of the workload test, can also be used for rubber and other elastic components of the elastic load test.This type with printing spring pull pressure testing machine using advanced high integration of integrated microcontroller and Chinese liquid crystal display, the appearance of the metal shell, greatly improve the anti-interference ability of the system.
Product Parameters
Model: ETH- 500
Power Supply: AC110-220V 50HZ/60HZ
Maximum testing load: 500N/50kg(110.2lbs)
Minimum resolution: 0.01N
Diameter of the platen: 1.9"（48mm）
Maximum free length of measurable spring: 5.9"（150mm）
Length of travel of the displacement scale: 3.5"（90mm）
Division value of the displacement scale: 0.01mm
Indication error: ±1%
Power capability (without printer): 13W
Power capability (with printer): 20W
Working temperature: 20±10℃
Temperature of storage and transportation: -27℃～+70℃
Relative temperature: 15%～80%RH
Product size: 8.7"*11.8"*22.8"（22*30*58cm）
Gross weight: 52.9lb（24kg）
Item included:
1 set of Spring Tensile Compression Testing Machine with Printing #056251
* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *
Los Angeles Warehouse
11241 Jersey Blvd Unit 102,
Rancho Cucamonga, CA, 91730
United States
Tel: show contact info show contact info
Pickup Hours:
Monday - Friday 1:30pm--5:00pm
* Before pickup, please Call to Make appointment.
Notice
1.Limited stock, please purchase ASAP if you want it.
2.Before pickup, please call us to make sure. Please tell us our item number when you contact with us.
3.The price will be adjusted when there's large fluctuations in exchange rates and raw material costs.
