Vacuum Exposure Unit 110V for Screen Printing #219106 - $555 (Rancho Cucamonga)
QR Code Link to This Post
*Cash Only*

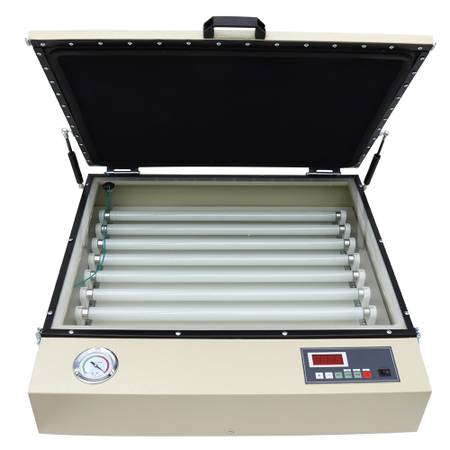

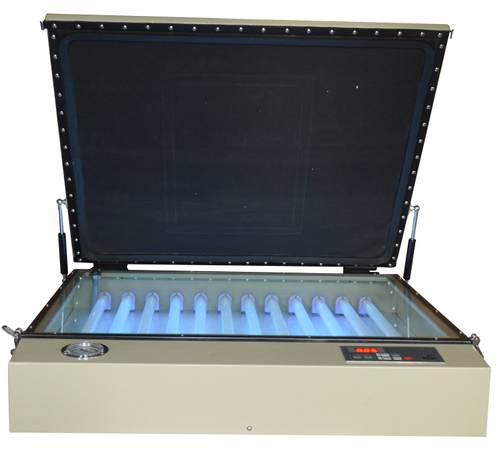

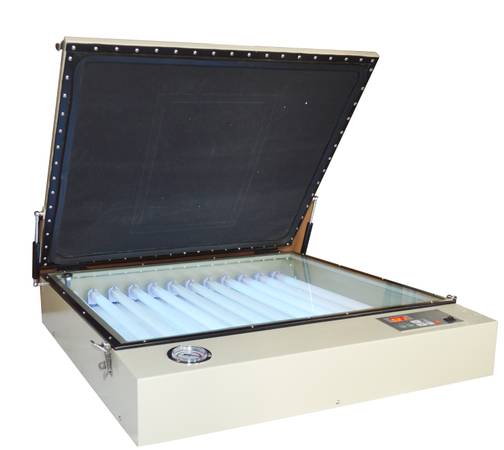

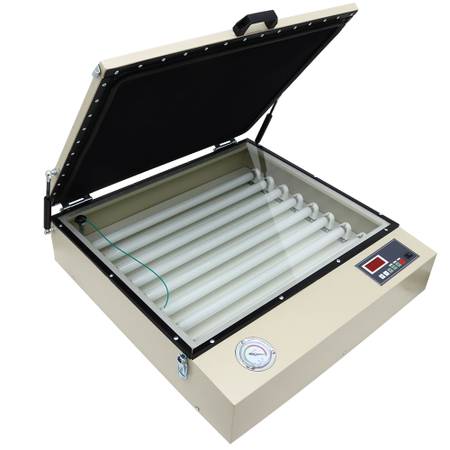

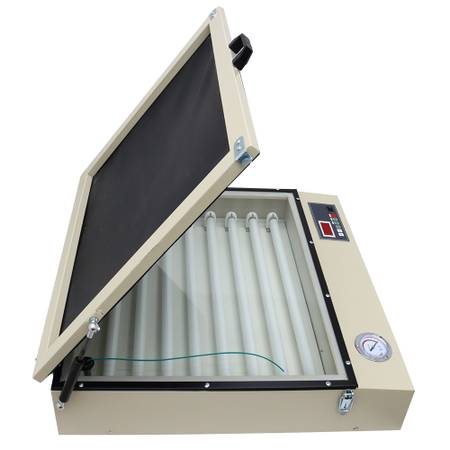

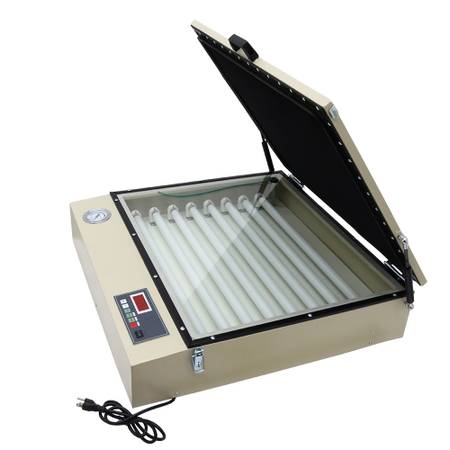

ASC6050ZK Precise Vacuum UV Exposure Unit is equipped with special UV lamps and auxiliary vacuum suction device. After putting the screens and well printed transparency film on the glass, close its cover and let it work after set the needed vacuum and exposure time, then it will make the screens and transparency film close on the glass tightly by evacuating the air of the vacuum charmer emerging from the rubber blanket. When the set time is up, it will deflate automatically, and then the exposure is finished. Please cut off the power supply.
Essential Parameters
· Input Voltage: 110V
· Exposure area: 15.6”*19.6” (40*50cm)
· Vacuum Degree: －0.08Mpa
· Illumination Uniformity: 85%
· Lamp Power: 240W
· Vacuum Pump Power: 60W
· Vacuum Time Setting Range: 0-999s
· Exposure Time Setting Range: 0-999s
· Machine Size: 27.5”*27.5”*7” (70*70*18cm)
· Package size: 31.3”*29.9”*9.5” (79.5*76*24cm)
· Net weight: 47.4Lb / 21.5kg
· Gross weight: 67Lb /30.4kg
Item included:
1 set of Vacuum Exposure Unit 110V for Screen Printing #219106
* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *
Los Angeles Warehouse
11241 Jersey Blvd Unit 102,
Rancho Cucamonga, CA, 91730
United States
Tel: show contact info show contact info
Pickup Hours:
Monday - Friday 1:30pm--5:00pm
* Before pickup, please Call to Make appointment.
Notice
1.Limited stock, please purchase ASAP if you want it.
2.Before pickup, please call us to make sure. Please tell us our item number when you contact with us.
3.The price will be adjusted when there's large fluctuations in exchange rates and raw material costs.
