Vertical Vibration Test Bench #056841 - $1,629 (Rancho Cucamonga)
QR Code Link to This Post
*Cash Preferred*
Description:

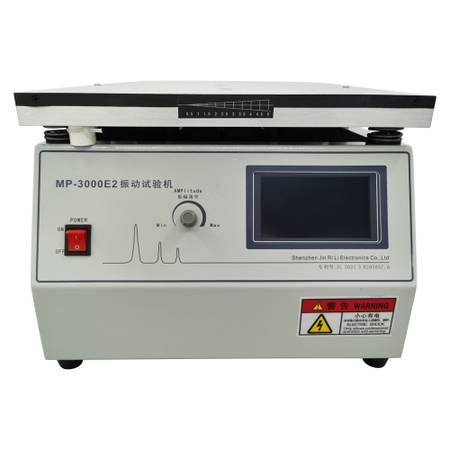

MP-3000E intelligent vibration testing machine is used to simulate the various environments encountered in the manufacturing, assembly, transportation and use of the execution stage, to identify whether the product is able to withstand environmental vibration, suitable for the research, development, quality control and manufacturing of electronics, mechanical and electrical, optoelectronics, motor vehicles, toys and other industries.
The test method of the machine is based on the digital control of random vibration, and the vibration of various environments is simulated and provided to determine the ability of the test sample to withstand the specified broadband random vibration.
-Product Parameters
Voltage: 110V/60Hz
Power: 1.2KW
Rated test load weight: 66lbs(30kg)
Vibration frequency range: 1~400hz
(Fixed frequency or sweep frequency can be set arbitrarily)
No load vibration amplitude: P～P/3mm
Vibration direction: Vertical/(Y)
Service environment: 0-40℃ RH＜80%
Working table size: 15.5"*14.2"(39.5CM*36CM)
Product size: 18.7"*15.7"*11.2"(47.5CM*40CM*28.5CM)
Package size: 20"*19"*14.6"(50CM*48CM*37CM)
Net weight/Gross weight: 77lbs(35kg)/86lbs(39kg)
20 different vibration parameters can be set, the test time can be set arbitrarily (0~999 minutes), the number of cycles can be set arbitrarily (1~200 times), and the number of tests can be added up.
Item included:
1 set of Vertical Vibration Test Bench #056841
* * * * * * * * * * * * * * * * * * * * * * * * * * * * * * *
Los Angeles Warehouse
11241 Jersey Blvd Unit 102,
Rancho Cucamonga, CA, 91730
United States
Tel: show contact info show contact info
Pickup Hours:
Monday - Friday 1:30pm--5:00pm
* Before pickup, please Call to Make appointment.
Notice
1.Limited stock, please purchase ASAP if you want it.
2.Before pickup, please call us to make sure. Please tell us our item number when you contact with us.
3.The price will be adjusted when there's large fluctuations in exchange rates and raw material costs.
