Cable, Signal, Flat, High-Voltage, Continuous-Flex - $30 (Duarte)
QR Code Link to This Post

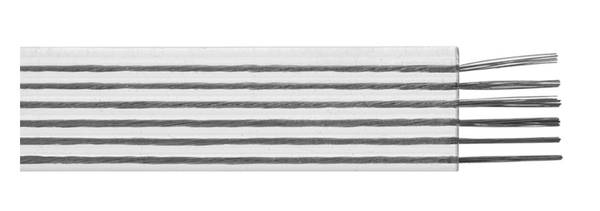

This cable is often used in oil drilling, robotics, and festoon systems. It withstands continuous motion without degrading data or signal transmission. With a flat shape, it’s good for tight spaces.
• Use For: Automation, Continuous Motion
• Six (6) strand, 28 AWG stranded wire, Current 5A at 86°F
• Continuous Flex
• Temperature Range: -85° to 325° F
• Rated to 12,000 volts AC
• Wire: Tin-plated Copper
• Insulation: Silicone Rubber
• Fed. Std. Class 1, ISO Class 3
• Meets UL 94 V-0 for flame retardance
Width is 0.33 inches, thickness is 0.08 inches, bend radius* of 0.8 inches, approx. 50 ft on the reel. * - Bend radius is the point to which the cable will bend without being damaged. It is measured from the center of the bend to the edge of the cable.
Condition: New, unused
Price: Selling on McMaster-Carr for $5.64/ft, so this partial reel would sell for about $280.
