Mayflower Blacksmith Heavy Duty Base Plate Two Post Lift Car lift BP 1 - $1,980 (City of Industry)
QR Code Link to This Post

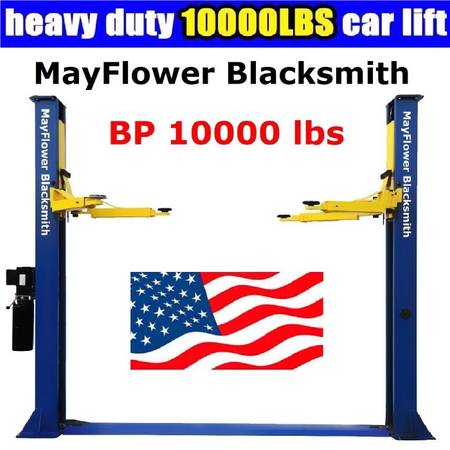

Mayflower Blacksmith Base Plate Two Post Lift Car lift 10000 lbs BP10000

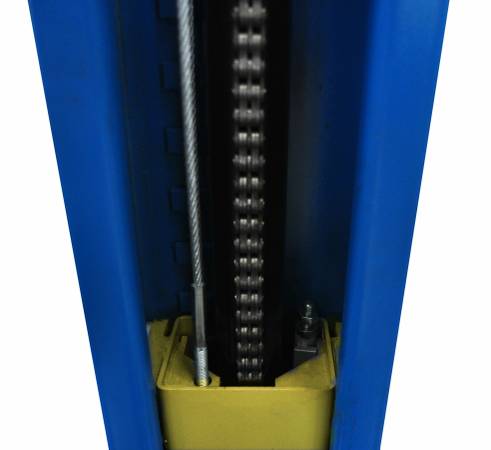

Driving Mode: Heavy Duty Two hydraulic cylinders, chain drive
Voltage: 220 Voltage
Lifting weight capacity: 10,000 lbs
Lifting height max: 75″
Lifting height max with Truck Adapter: 79″
Overall Height: 111″
Overall Width: 132″
Width between Posts: 106″
Drive Thru Width: 98″
Lifting Time: 40 sec – 50 sec
Motor: 220V 60Hz 1 Phase / 3 Horse Power

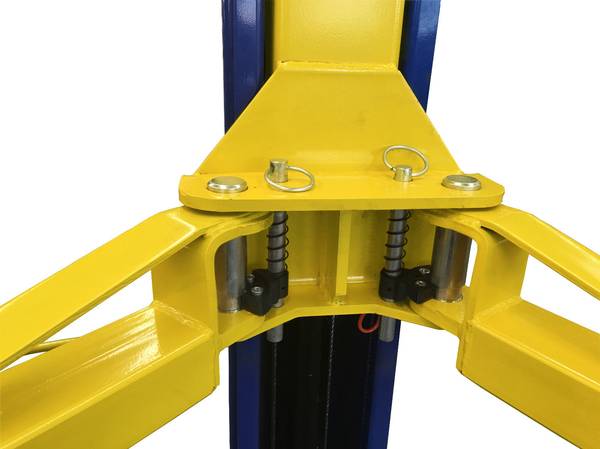

Front Arm assembly 2 Stage reach from 28″ to 42″
Rear Arm assembly 3 Stage reach from 32″ to 62″
Double two point safety lock release with built-in 18 locking positions
Automatic arm lock restraints
Screw-in type lifting pads increase more safety and truck adapters included
Relief valve built in power pump to prevent overloading

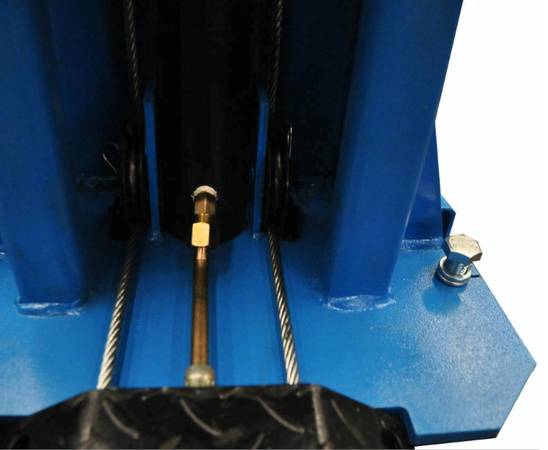

Heavy duty 4/10″ diameter cable and 3 2/5″ pulley that reduce high stress on synchronization process and increase cable life
Ultra high molecular self lubricating nylon slider that ensures carriage smooth moving up and down
Floor concrete requirement: 4″ Depth, 3000 PSI Rebar Reinforced

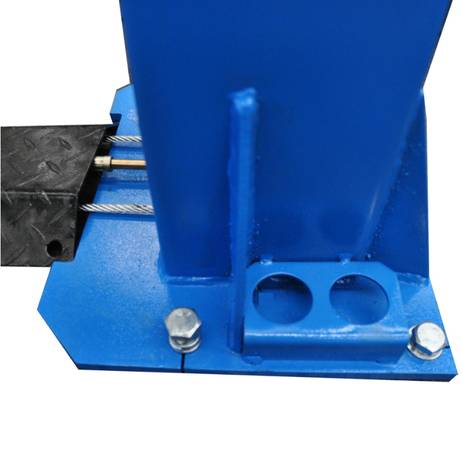

Anchor bolts/mounting hardware included
A set of 4” Truck adapters included
Door guards protection rubber is optional
Blue Powder coated finish provides superior resistance against corrosion.
Shipping Weight: 1370 LB
