Strange Engineering - Quick Disconnect Steering Hub - $120 (Monterey Park)
QR Code Link to This Post
#Q1200

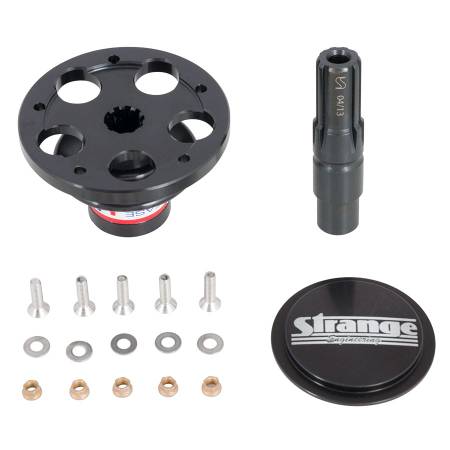

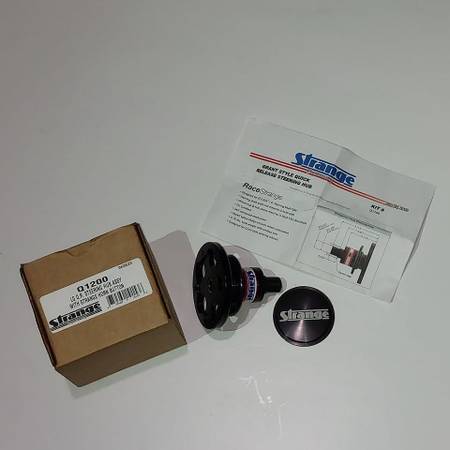

Strange Quick Release Hub With Strange Horn Button
• Provides quick removal of steering wheel
• Integral flange eliminates loose components
• Spring loaded with positive locking system
• Coarse spline simplifies engagement
• One wide tooth ensures proper steering wheel alignment
Hub
• 2024-T351 billet aluminum
• 3.500″ O.D.
• 5 on 2.834″ bolt circle .192″ holes
• .750″ lightening holes
• Broach 10 spline with one tooth removed
• Black hard anodized finish
Release Collar
• 6061-T6511 billet aluminum
• 2.480″ O.D.
• Black hard anodized finish
Weld End – Q1000A
• 4130 chrome moly
• 9 spline with one wide tooth
• .650″ O.D. tube end
• .312″ bore lightening hole
• Black oxide finish
