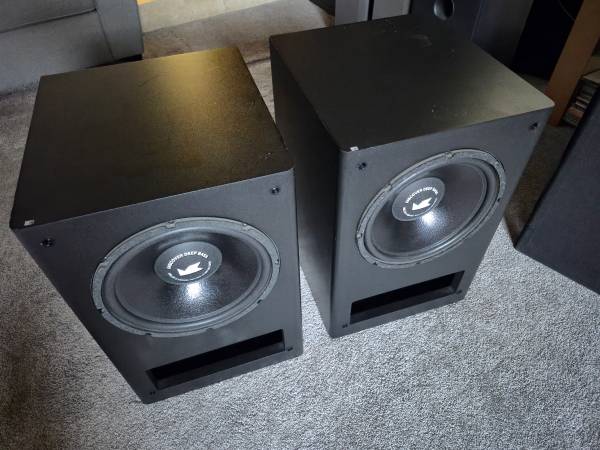

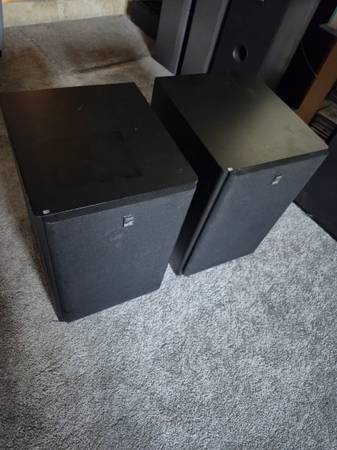

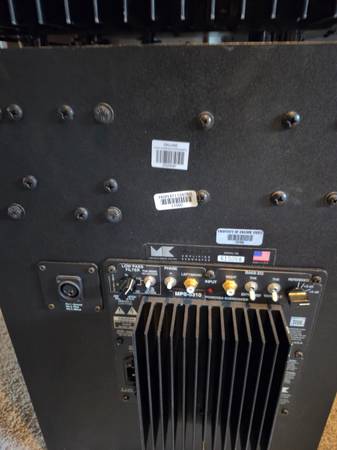

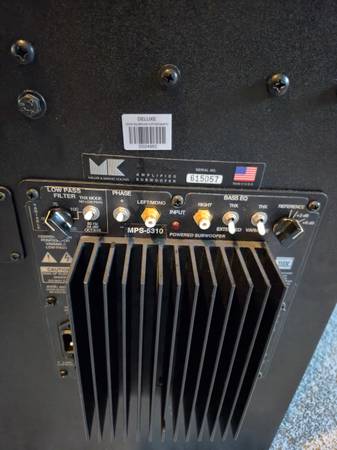

M&K MPS 5310 - $1,000 (redondo beach)
QR Code Link to This Post
MPS-5310 SPECIFICATIONS:
Transducer Type (x2) •
12" Acrylic polymer coated heavy paper cone •
Acrylic polymer coated foam surround •
1 Inch voice coil length •
2 Inch voice coil diameter •
Kapton (voice coil former bonded with high temperature epoxy) •
Voice coil is asymmetrically hung •
Under cut ventilated pole piece •
Bumped back plate •
38 oz ceramic main magnet •
26 oz bucking magnet with foam damper
Rated Power Output 350 Watts RMS
Peak Power Output (20 millisecond pulse) 600 Watts
Amplifier Distortion Less than .03% from 20Hz to 200Hz at full output.
Differential Input Impedance Balanced 61K Ohms Unbalanced 15K Ohms
Amplifier Noise Relative To Full Output -90dB Maximum Acoustic Output 113dB @ 1 Meter (pass band 40Hz - 150Hz)
Response (Anechoic) THX Position -3dB at 35Hz +/-1dB pass band (40Hz to 150Hz) -3dB at 200Hz Anechoic Position -3dB at 20Hz +/-1dB pass band (40Hz to 150Hz) -3dB at 200Hz
Low Pass Filter 80Hz Filter 24dB per Octave 80Hz Variable Filter 36dB per Octave - 50Hz to 125Hz
Dimensions (H x W x D) 23" x 15 1/4" x 19 5/8"
Weight 84 lbs
