EAW KF300Z Speakers PAIR Excellent Condition - $900 (Torrance)
QR Code Link to This Post
EMAIL YOUR NAME AND NUMBER FOR A RESPONSE. I DO NOT RESPOND TO EMAILS.
SCAMMERS DO NOT CONTACT ME. I KNOW ALL OF YOUR SCAMS.
Up for sale I have EAW KF300Z Speakers PAIR in Excellent Condition. Speakers work perfectly, have no issues, sound incredible and are ALL ORIGINAL.
A 3-way full range loudspeaker in a vented trapezoidal enclo-
sure. Includes a 12-in woofer, a horn-loaded 7-in midrange
cone with Radial Phase Plug™, and a 1.4-in exit compression
driver on a 90° x 45° constant directivity horn. The internal
crossover is user-switchable for either passive or bi-amp oper-
ation (with a passive LF/MF crossover). The enclosure has six
fly points, three each top and bottom, plus an integral pole
mount cup. Handles are located for the best balance when
carrying.
The KF300z is one of the smallest, full-range, 3-way loud-
speakers available. It is particularly suited for portable or
installed applications, including band PA, club systems, cor-
porate AV, and theatrical productions. The midrange section
incorporates a 7-in radial phase plug based on EAW’s patent-
ed 10-in Radial Phase Plug™ used in other KF Series products.
This design produces a time-coherent midrange wavefront
that is critical to ensuring good vocal articulation. The
appearance of the KF300z is enchanced with a curved gille
that matches other KF300 as well as companion KF600 Series
products
Frequency Response (Hz)
±3 db 100 Hz to 20 kHz
-10 dB 80Hz
Axial Sensitivity (dB SPL/1 Watt/1m)
Passive 92
LF/MF 92
HF 101
Impedance (Ohms)
Passive 4
LF/MF 4
HF 8
Power Handling, AES Standard (Watts)
Passive 750
LF/MF 750
HF 200
Calculated Maximum Output (dB SPL, @ 1m)
Full Range Peak 127.0
Bi-amped LF/MF Peak 127.0
Bi-amped HF Peak 130.0
Full Range Long Term 121.0
Bi-amped LF/MF Long Term 121.0
Bi-amped HF Long Term 124.0
Nominal Coverage Angle / -6 dB points (degrees)
Horizontal 90
Vertical 45
LF Subsystem & Loading 1x 12-in, vented
MF Subsystem & Loading 1x 7-in horn-loaded cone
HF Subsystem & Loading 1x 1.4-in exit/2.5-in diaphragm
compression driver on constant
directivity horn
System Configuration 3-way, full-range
Powering Configuration(s) Switchable full-range or bi-
amplified (passive LF/MF
crossover)

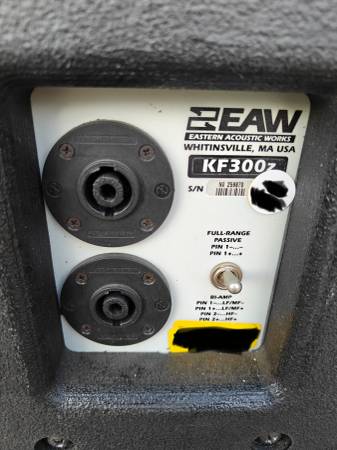

Controls (switches, knobs) Powering mode switch
Recommended High-Pass
Frequency (12 dB/octave) 80 Hz
Enclosure Materials Exterior grade Baltic birch plywood
Finish Wear resistant textured black paint
Connectors 2x Neutrik NL4 Speakon
Mounting Hardware 6x 3-position flytracks with
integral 3/8”-16 threaded
mounting/suspension points (3
each top & bottom), recessed
cup for standmount
Grille Powder coated perforated steel,
foam backed
