Automatic Honey Sauce Piston Filling Machine With Tracking Heads - $15,000

‹ image 1 of 20 ›
Automatic Honey Sauce Piston Filling Machine With Tracking Heads 1
Automatic Honey Sauce Piston Filling Machine With Tracking Heads 1 thumbnailAutomatic Honey Sauce Piston Filling Machine With Tracking Heads 2 thumbnailAutomatic Honey Sauce Piston Filling Machine With Tracking Heads 3 thumbnailAutomatic Honey Sauce Piston Filling Machine With Tracking Heads 4 thumbnailAutomatic Honey Sauce Piston Filling Machine With Tracking Heads 5 thumbnailAutomatic Honey Sauce Piston Filling Machine With Tracking Heads 6 thumbnailAutomatic Honey Sauce Piston Filling Machine With Tracking Heads 7 thumbnailAutomatic Honey Sauce Piston Filling Machine With Tracking Heads 8 thumbnailAutomatic Honey Sauce Piston Filling Machine With Tracking Heads 9 thumbnailAutomatic Honey Sauce Piston Filling Machine With Tracking Heads 10 thumbnailAutomatic Honey Sauce Piston Filling Machine With Tracking Heads 11 thumbnailAutomatic Honey Sauce Piston Filling Machine With Tracking Heads 12 thumbnailAutomatic Honey Sauce Piston Filling Machine With Tracking Heads 13 thumbnailAutomatic Honey Sauce Piston Filling Machine With Tracking Heads 14 thumbnailAutomatic Honey Sauce Piston Filling Machine With Tracking Heads 15 thumbnailAutomatic Honey Sauce Piston Filling Machine With Tracking Heads 16 thumbnailAutomatic Honey Sauce Piston Filling Machine With Tracking Heads 17 thumbnailAutomatic Honey Sauce Piston Filling Machine With Tracking Heads 18 thumbnailAutomatic Honey Sauce Piston Filling Machine With Tracking Heads 19 thumbnailAutomatic Honey Sauce Piston Filling Machine With Tracking Heads 20 thumbnail
condition: new
make / manufacturer: VKPAK
model name / number: VK-PF-T2
size / dimensions: 3000*1500*2100mm

more ads by this seller

QR Code Link to This Post

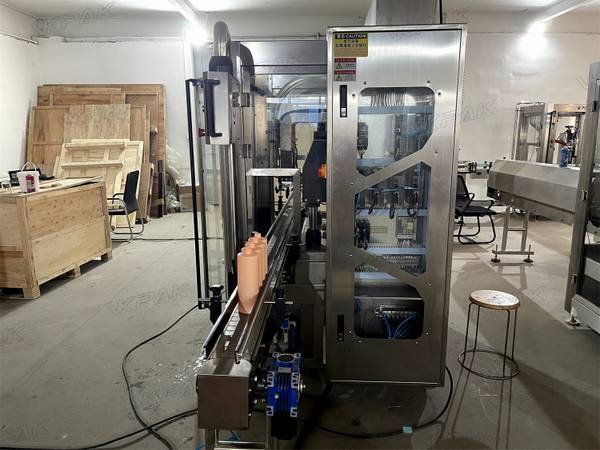

This machine is equipped with servo motor and you just need to enter the certain number to adjust filling range. Compared with other filling machine, this tracking type filling machine can control filling nozzle follow moving bottles during filling work. It reduce production error and improve filling accuractely. It is designed for filling paste like curry paste, tomato sauce, pepper sauce, each nozzle can be controlled separately.

Parameter

Machine Model: VK-PF-T2
Voltage: 380V/220V/110V
Power: 8KW
Filling Head: 2 Heads(Can be customized)
Filling Range:500-5000ml (Can be customized)
Filling Speed:1000-3600bottles/hour(depend on material and bottle size)
Filling Accuracy: ±1%
Air Pressure: 0.6-0.7Mpa
Air Consumption: 6-7m3/min
Filling Nozzle Moving Distance: About 835mm
Conveyor Size: 113*4000mm
Machine Material: Stainless Steel
Machine Size: About 3000*1500*2100mm
Machine Weight: About 515kg

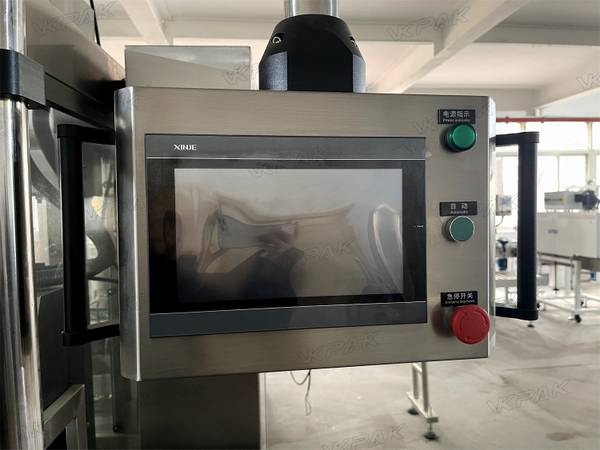

With PLC control panel, it is easy to set working parameters like filling speed. It is with an emergency stop button, ensuring a safe working environment. The language of control panel can be customized as needed. Please contact us if you need.

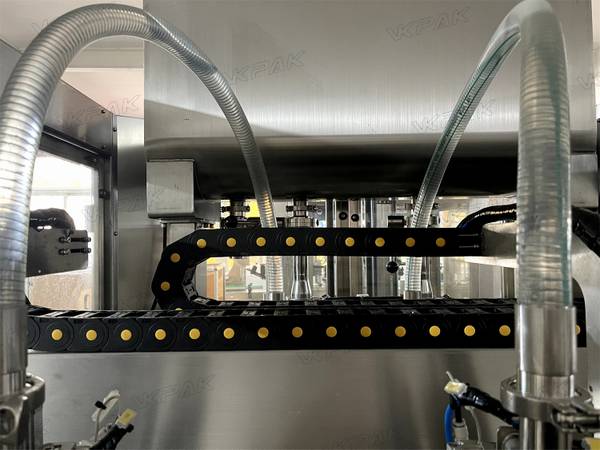

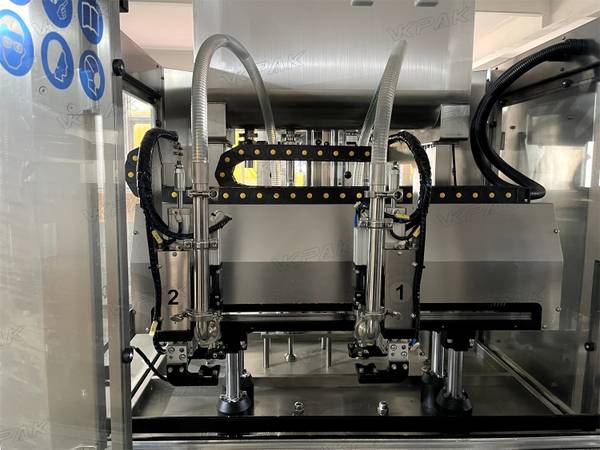

Different from other filling machines, the filling heads of this machine will automatically move with the bottles during filling, rather than stopping to fill. Greatly improve efficiency. With anti-dripping function, it will fill liquid accurately.

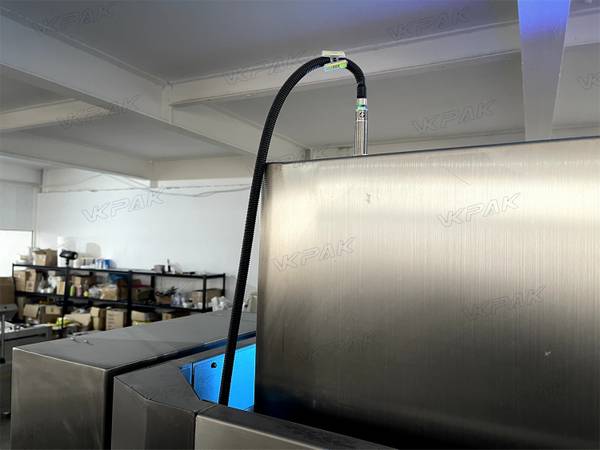

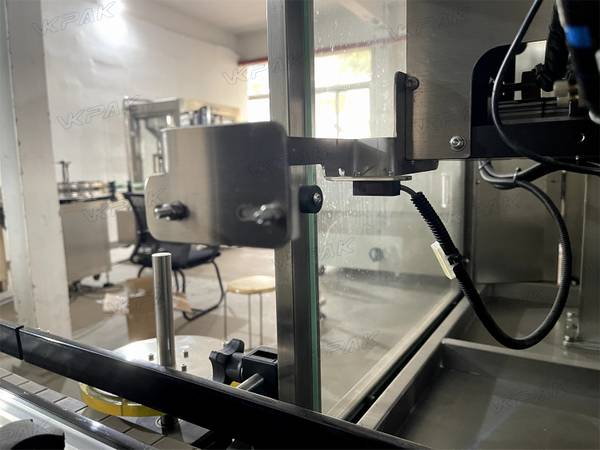

lt is designed for detecting bottles, ensuring they can be filled accurately, realizing automated production. The position and sensitivity of electric eye can be adjusted according to production need. Easy to operate.

With chain conveyor belt, it can transport large volume products steadily and smoothly. Improve work efficiency. The width of feed inlet can be adjusted as needed, making it suitable for products of different sizes.

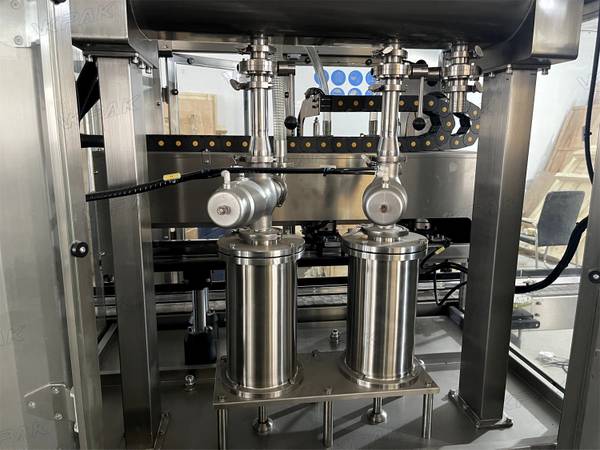

Made of high quality materials, the piston cylinder will measure precisely, which helps to realize quantitative filling. The food grade material makes it possible to fill food materials, ensuring production quality.
