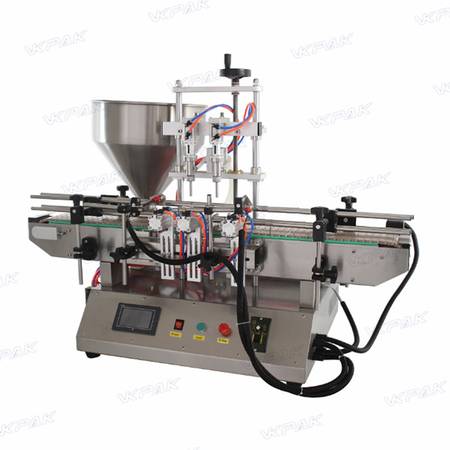

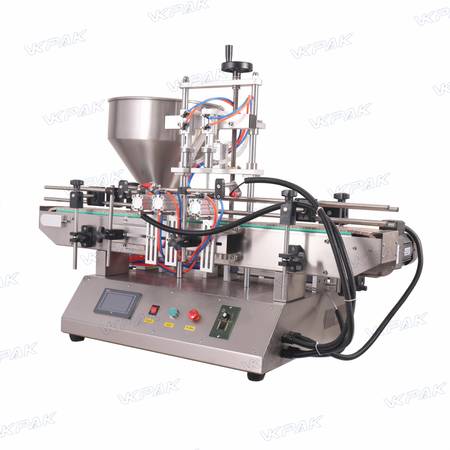

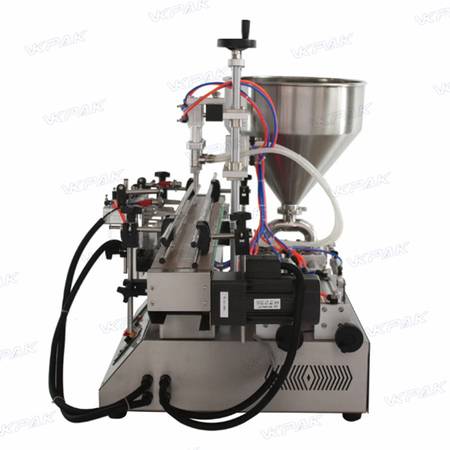

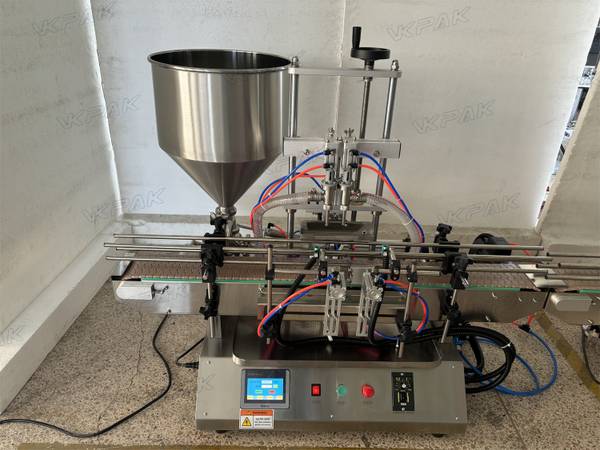

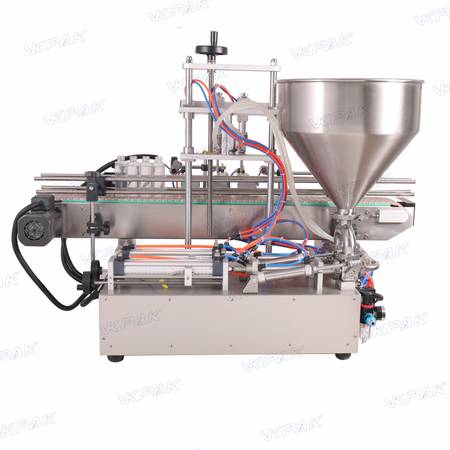

Tabletop Honey Cream Cosmetic Lotion Bottle Paste Filling Machine - $2,800
condition:
new
make / manufacturer:
VKPAK
model name / number:
VK-TPF
size / dimensions:
1200x800x1000mm
QR Code Link to This Post
This machine is suitable for small size bottles and cans, such as cream, hand sanitizer, etc
It is widely use for food, chemical and cosmetic etc.
We can accord to customer's requirements to design the filling volume.
Parameter:
Voltage: AC220/110V 50-60Hz
Power: 200W
Filling Speed: 800-1200bph
Suitable bottle diameter: 30-80mm
Suitable bottle height: 60-200mm
Filling Accuracy: ±1%
Filling range: 10-100/30-300/50-500ml
Air Pressure: 0.6-0.8MPa
Air Compressor: ≥7.5kw 200L
Conveyor length: 1200mm
Machine size: 1200x800x1000mm 90KG
Packaging size and weight: 1250x850x1100mm 160KG
Features:
1. Can customize products according to customer bottle samples.
2. Adopted piston quantitative, the material contact parts are made of 304ss, they are food grade.
3. Screen rational design, simple operation.
4. Removable design, with stable and reliable performance, easy maintenance.
5. Filling accuracy, adaptability.
6. The machine use interval filling system, so it can be used for small size of bottle, and the filling speed will also be higher.
Components: touch screen, power switch, start switch, emergency stop switch, conveyor speed adjustment switch
The parameters of the machine can be easily adjusted through the touch screen.
Through three Airtac cylinders and two high-sensitivity optical eyes, the bottle positioning can be precisely controlled and the filling work can be completed automatically
The hopper can be customized according to the filling product, and mixing and heating functions can be added.
The size of the filling nozzle can be customized according to the diameter of the bottle mouth.
Anti-drip function can be customized
6 Airtac brand solenoid valves control 6 cylinders, including two feed cylinders, one three-way cylinder, and three positioning cylinders.
