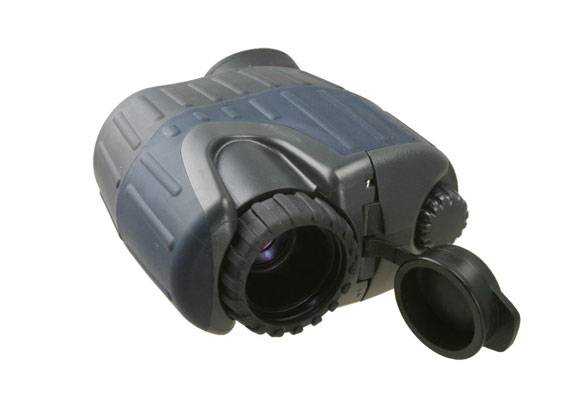

Raytheon handheld MX-1 thermal Image - $1
QR Code Link to This Post
Military grade thermal imaging that has been used by our military all over the world. New these retail for over $8000
Possible trade for dual nods like PVS-31 or other second amendment items
I will also entertain best cash price for it
These are a must have if you’re serious about seeing what’s out there and owning in the night
Thermal imaging plus night vision is a game changer
Here are the specs
MX1 specs----
- Specifications
MSRP: $8,650.00 KERIF Price:$6,785.00
FEATURES MX-1 Mini-IR
Focal Plane Array Type & Material Amorphous Silicon Microbolometer
Pixel Count (Resolution) 160 x 120
Spectral Response 7-14 μm (filter bandwidth)
Thermal Sensitivity ≤100 mK
Thermal Imaging Performance Startup Time ~ 5 sec
Detection Range for Human Activity Up to 1000 Feet (305 meters)
Contrast / Brightness Fully Automatic
Susceptibility to Blinding Visible Light None
Infrared Polarity None
Optics Lens Focal Length 25mm
Field of View 17° x 12°
Range to Detect Human Activity Up to 1000 Feet (305 meters)
Minimum Focus Distance ~ 3 ft. (1 meter)
Focus Method Manual
Video Output Format Analog: SMPTE-170 (cf. NTSC monochrome) on rear outlet jack
Viewfinder Display Monochrome LCD (320 x 240 pixels)
Viewfinder Dimming Integral to power on/off switch
Power Power Source Two (2) AA batteries
Operating Time ~ 3 Hours with alkaline ~7 Hours with lithium [77°F (25°C), night-time operation]
Auxiliary Power 9 to 12 VDC input on rear outlet jack
Environmental Characteristics Operating Temperature -4°F to 140°F (-20°C to 60°C)
Storage Temperature -4°F to 176°F (-20°C to 80°C)
Water & Shock Resistance Waterproof to 9ft (3m) submersion, buoyant in fresh water Shockproof to 6 ft (2m) drop
EMC Compliance FCC Part 15 & CE Mark
Physical Characteristics Size 5 1/4" L x 4 1/2" W x 2" H
(13.4 x 11.4 x 5.1 cm)
Weight 13 oz (381g), batteries installed
Eye Cup Integral to camera body with 2" eye relief
Thermal eye x50
Focal Plane Array:
Material & Structure:Amorphous Silicon Microbolometer
Pixel Count (Resolution):100 x 80
Spectral Response:7-14 μm (filter bandwidth)
Thermal Sensitivity:≤150 mK
Thermal Imaging Performance:Start-up Time
Brightness/Contrast:Fully automatic
Range to Detect Human Activity:Up to 1000ft (305m)
Susceptibility to Blinding Visible Light:None
Infrared Polarity:White Hot
Optics:
FOV (H x V):11 x 8
Focus method:Manual
Minimum Focus Distance:~ 3ft (1m)
Video:
Viewfinder Display:Monochrome LCD (320 x 240 pixels)
Viewfinder Dimming:Integral to power on/off switch
Power:
Power Source:2 AA batteries
Operating Time:2 hours with alkaline 5 hours with lithium
Auxiliary Power:9 to 12 VDC input on rear outlet jack
Environmental Characteristics
Operating Temperature:+14F to 12°F (-10C to 50C)
Storage Temperature:-4°F to 176°F (-20°C to 80°C)
Water & Shock Resistance:Waterproof to 9ft (3m) submersion, buoyant in water. Shockproof to 6ft (2m) drop.
EMC Compliance:FCC Part 15 & CE Mark
Physical Characteristics:
Size:5-1/4" L x 4-1/2" W x 2" H (13.4 x 11.4 x 5.1cm)
Weight:13oz (381g) batteries installed
Eye Cup:Integral to camera body with 2" eye relief
The MX-1 is the world's smallest, lightest, simplest-to-use and most rugged production thermal imager. It incorporates digital signal processing with integrated compact optics and rugged packaging with attention to ergonomic detail. It has been designed to endure the rigors of outdoor use, occasional rough handling, and accidental submersion for a few minutes in shallow water. Even with its small design, the image quality is not compromised and maintains high performance at an unparalleled value.
The MX-1 provides the Firefighter or Security Officer with Thermal Detection capabilities just by reaching into a pocket. Your hands have better things to do than carry large cameras. Easily find your way through the thickest of smoke, render fog useless and see through camouflage and shadows.
The "Top-of-the-Shelf" Amorphous Silicon Microbolometer Technology found inside the MX-1 is what permits the imager to be so small and light. Measuring only 5 inches across and weighing only 13 ounces with the battery, the MX-1 easily fits into the palm of a hand or pocket, perfect for covert operations or convenience.
